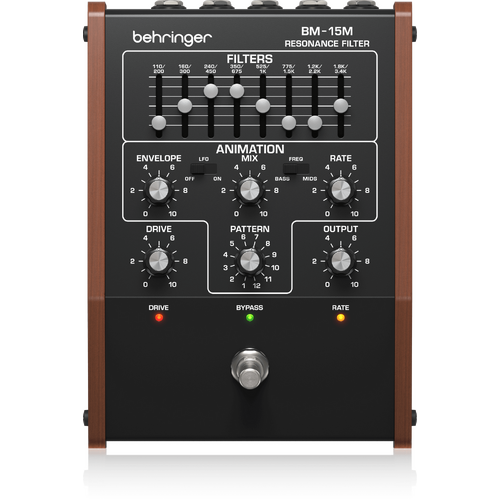

Behringer BM-15M Resonance Filter

The Behringer BM-15M RESONANCE FILTER is the ultimate filtering machine designed to bring motion, groove and life to your sound. With 8 filters, selectable patterns, MIDI control and expressive modulation options, BM-15M is a gateway to an entirely new world of sound whether you’re a guitarist looking for dynamic tonal animation, a synth player seeking evolving textures.

FEATURES

• 8 Filters with selectable patterns for intricate and evolving effects

• Authentic recreation of the Moog MF-105 from the ’90s

• Envelope control for dynamic and expressive modulation

• USB/MIDI control for ultimate control and flexibility

• Rate control for modulation speed

• Resonance control for enhanced filter effect

• Mix control for blending between input signal and output

• Expression pedal input for real-time control

• Compact and rugged design for easy transport and onstage use

• Combine with other pedals for even more creative possibilities

Unlock Infinite Creativity
At the heart of BM-15M lies its powerful filter sequencing which rhythmically animates your sound across 12 dynamic patterns. Choose from fast, percussive sequences or slow, evolving waves of movement all while tweaking envelope shaping, and rate for infinite tonal possibilities. With MIDI integration, you can lock these effects perfectly to the beat or, with the help of an expression pedal, take a more hands-on control over your ever-evolving sonic landscape.

Perfect for Guitar and Synth Players
Guitarists and synth players will love BM-15M for its ability to turn simple chord progressions, and pads into groove-heavy textures and dynamically shifting soundscapes filled with life and dynamics. Sync BM-15M to your DAW or drum machine and suddenly your synth lines will lock in with the beat, breathing new life into your arrangements.

Expand Your Sonic Universe
With drive control to push your signal into warm, saturated harmonics and a mix knob to blend between wet and dry sounds, BM-15M adapts to any style or setup. This is more than just an effect – it’s a creative powerhouse that invites you to explore new territories in sound.

Customize with Guitar Tribe
Take your BM-15M experience even further with the Guitar Tribe app! This is a free companion app for Mac and PC that lets you connect your pedals directly to your computer. Create and save your own custom presets, unlock additional features, and tweak each feature down to the decimal point! Refining your live rig? Getting ready to record? Just playing around? Guitar Tribe gives you the tools to go deeper!

Download Guitar Tribe today and start customizing your tone like never before.

Don’t settle for static tones – bring your sound to life with Behringer BM-15M RESONANCE FILTER!

SPECIFICATIONS

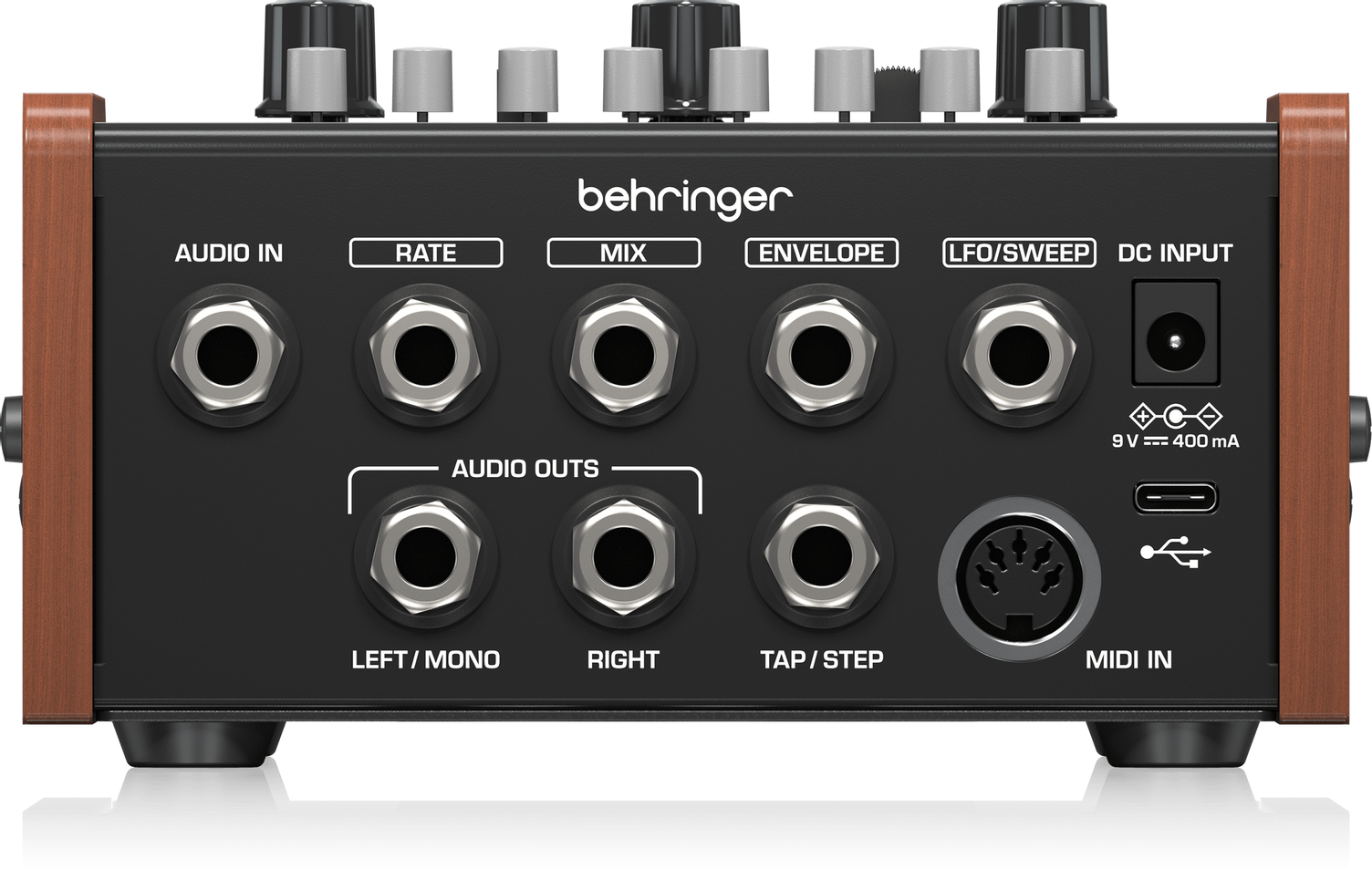

Audio Connections

Audio in
Connector: 1 x 1/4" TS, unbalanced
Impedance: 238 kΩ

Left / mono out
Connector: 1 x 1/4" TS, unbalanced
Output impedance: 1 kΩ

Right out
Connector: 1 x 1/4" TS, unbalanced
Output impedance: 1 kΩ

Tap / step
Connector: 1 x 1/4" TRS, balanced
Input impedance: 48 kΩ

Control Connections

Rate
Connector: 1 x 1/4" TRS
Impedance: 22 kΩ, unbalanced
CV input range: 0 V to +5 V

Mix
Connector: 1 x 1/4" TRS
Impedance: 22 kΩ, unbalanced
CV input range: 0 V to +5 V

Envelope
Connector: 1 x 1/4" TRS
Impedance: 22 kΩ, unbalanced
CV input range: 0 V to +5 V

LFO / sweep
Connector: 1 x 1/4" TRS
Impedance: 22 kΩ, unbalanced
CV input range: 0 V to +5 V
MIDI in: 2 x 5-pin DIN, 16 channels
USB: 1 x USB, type C

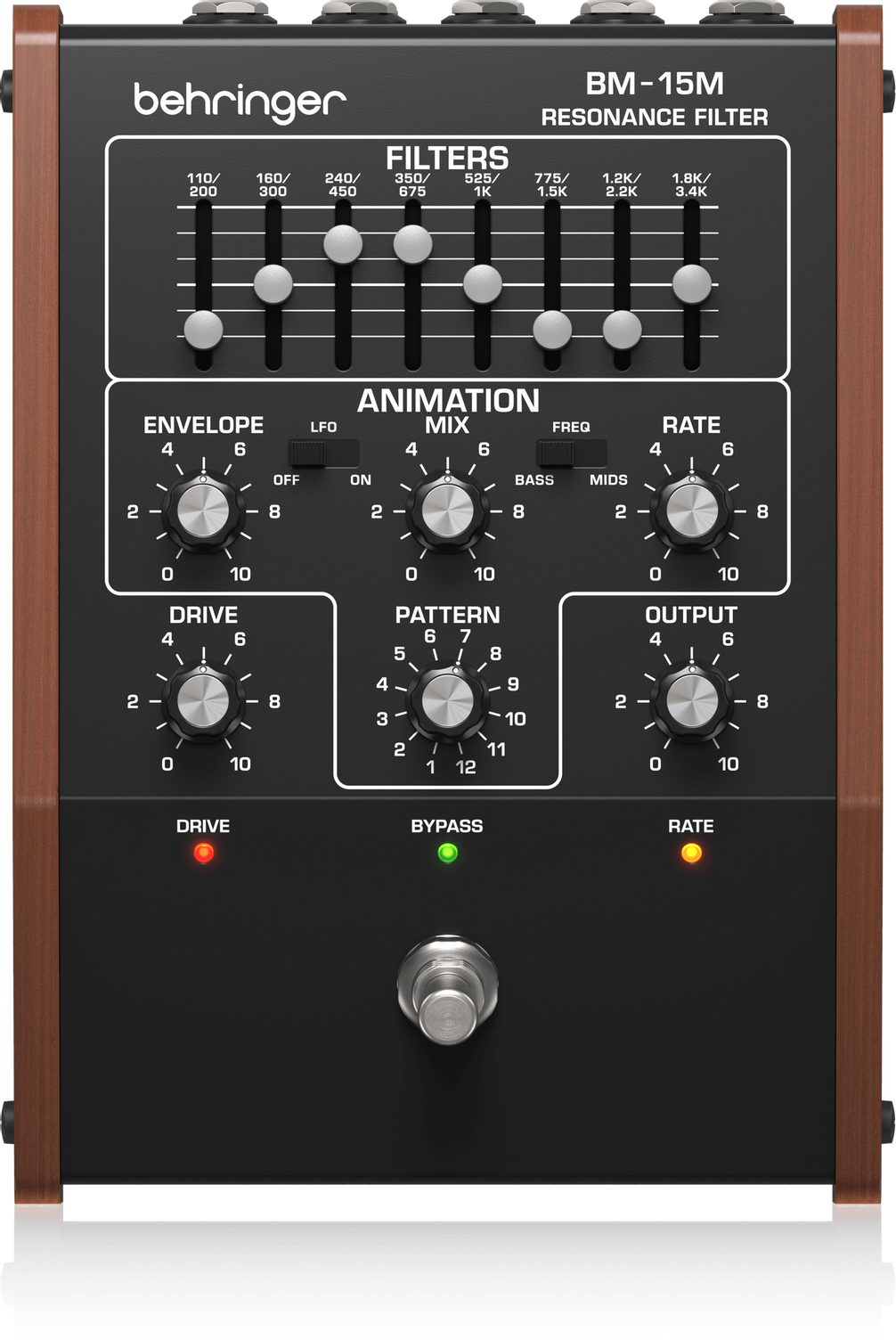

Controls
Filter: 8 x sliders
Drive: 1 x rotary knob
Output: 1 x rotary knob
Envelope: 1 x rotary knob
LFO (off / on): 1 x sliding switch
Mix: 1 x rotary knob
Freq (bass / mids): 1 x sliding switch
Rate: 1 x rotary knob
Pattern: 1 x rotary knob
Bypass: 1 x footswitch

System
Frequency response: 20 Hz to 20 kHz (+0 / -2 dB)
Dynamic range: > 66 dB
Signal-to-noise ratio: > 56 dB
Overall gain: +16.5 dB

Power Supply / Voltage
Power input: Standard 9 V DC, centre negative, > 400 mA (power supply not included)
Power consumption: 1.8 W

Dimensions / Weight
Dimensions (H x W x D): 85.9 x 147.6 x 196.9 mm (3.38 x 5.81 x 7.75")
Weight: 1,108 g (39.1 oz)
