Charvel Pro-Mod Plus Dinky DK24 HH 2PT E Raven Black

Please note: This guitar comes with a gig bag.

Loaded with premium features, this Pro-Mod Plus Dinky® DK24 2PT model features a sleek Dinky® body constructed from basswood, sculpted shredder's cut heel and scalloped lower back bout for seamless access to the upper registers. The bolt-on caramelized maple neck features graphite reinforcement for rock-solid stability, a satin natural finish on the back of the neck for sublime playability, and a conveniently located heel-mount truss rod adjustment wheel for neck relief tweaks on the fly. Designed for speed, the 12"-16" compound radius ebony fingerboard features comfortable rolled edges, 24 stainless steel jumbo frets and Luminlay® side-dots for enhanced visibility in low-light conditions.

This axe features an HH pickup configuration consisting of a direct mount Seymour Duncan® Full Shred™ TB-10 bridge pickup and direct mount Seymour Duncan® Alnico Pro II™ APH-1N neck pickup. The bridge pickup radiates a crisp top-end with low-end articulation, while the neck pickup has incredible range with soaring highs and silky lows.

Other premium modern features include a five-way blade pickup switch, speed knobs for the volume and no-load tone controls, Wilkinson® recessed tremolo bridge with locking saddles, Charvel-branded die-cast locking tuners and more.

Blending sophisticated style with assertive tone, the Pro-Mod Plus Dinky® DK24 2PT HH E delivers premium performance and modern features.

FEATURES

• 25.5" scale length

• Basswood Dinky® body

• Scalloped lower back bout

• Bolt-on maple neck with graphite reinforcement

• Sculpted shredder's cut heel

• 12"-16" compound radius ebony fingerboard with 24 jumbo stainless steel frets

• Heel-mount truss rod adjustment wheel

• Direct mount Seymour Duncan® Full Shred™ TB-10 humbucking bridge and Seymour Duncan Alnico II Pro™ APH-1N humbucking neck pickups

• Five-way blade switch, volume control and no-load tone control

• Wilkinson® WVS130-2p tremolo bridge with locking saddles

• Charvel-branded die-cast locking tuners

• Included deluxe gig bag

SPECIFICATIONS

General
Series: Pro-Mod Plus
Orientation: Right-Hand
Color: Raven Black
Country Of Origin: ID

Neck

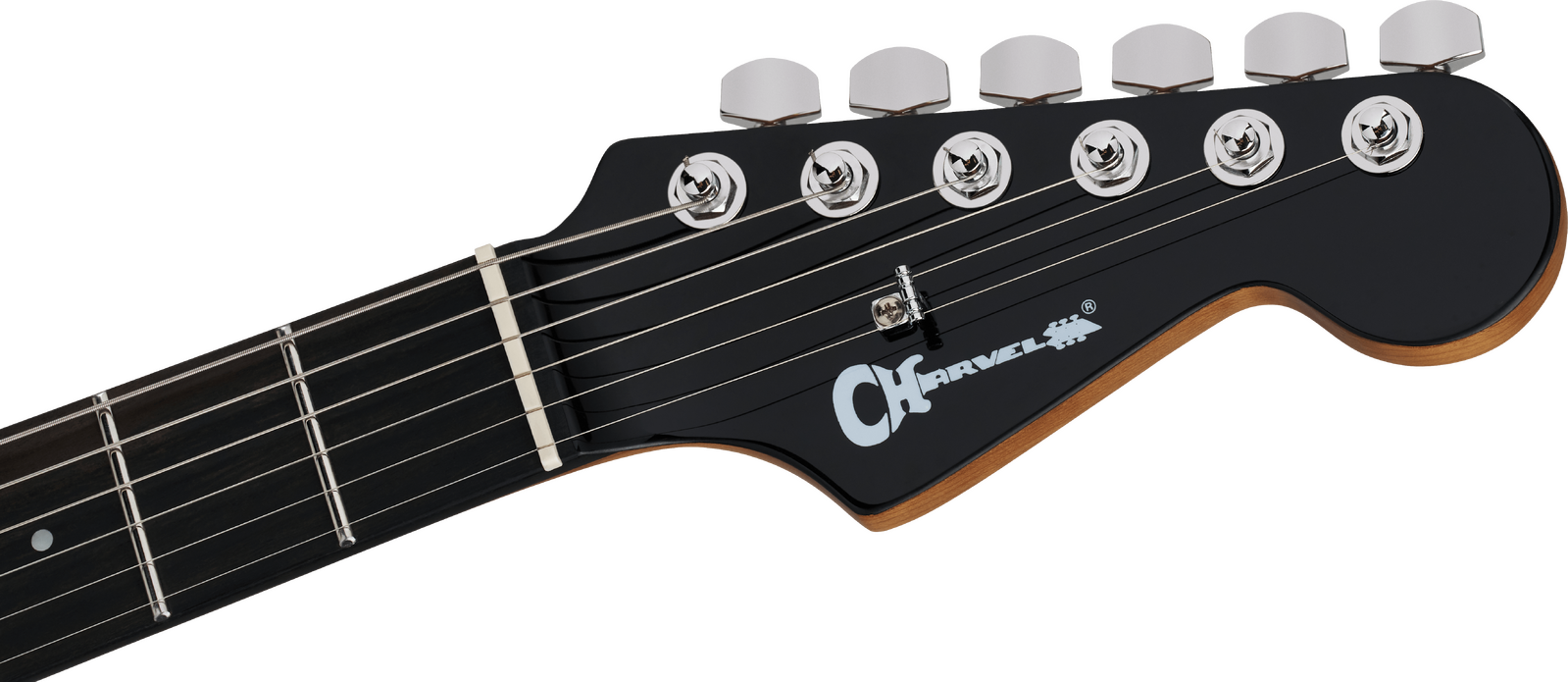

Headstock: Licensed Fender® Stratocaster®
Neck Material: Caramelized Maple
Neck Finish: Natural Satin
Neck Shape: Speed Neck with Rolled Fingerboard Edges
Neck Construction: Bolt-On with Graphite Reinforcement
Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
Fingerboard Material: Ebony
Position Inlays: 4mm Pearloid Dot
Side Dots: Luminlay®
Number of Frets: 24
Truss Rod: Dual-Action with Wheel
Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
String Nut: Graph Tech TUSQ XL
Nut Width: 1.6875" (42.86 mm)
Nut Material: Graph Tech TUSQ XL
Fret Size: Jumbo Stainless Steel
Scale Length: 25.5" (648 mm)

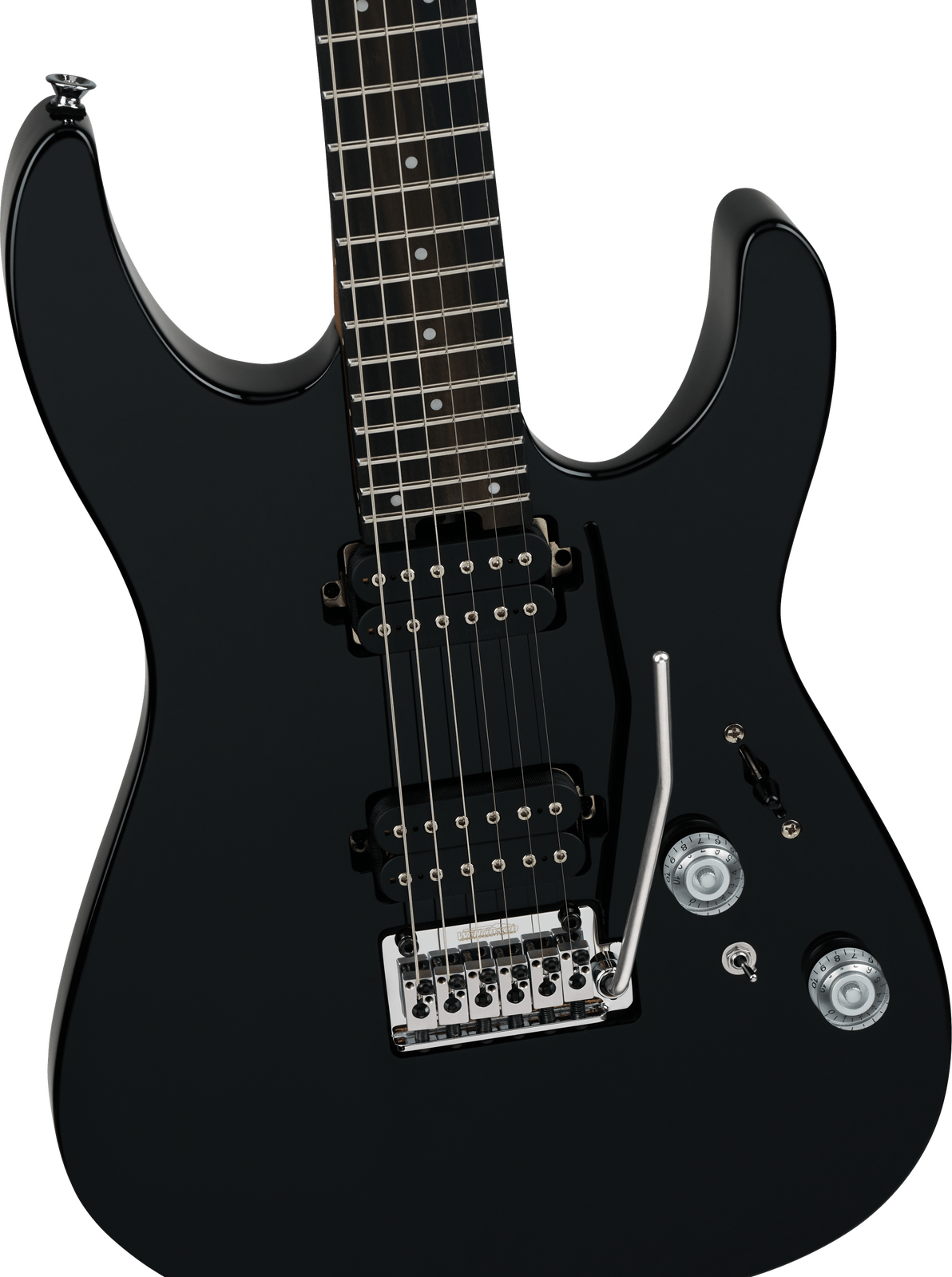

Body
Body: Basswood
Body Finish: Gloss
Body Shape: Dinky®
Body Style: Solid Body
Body Material: Basswood

Hardware
Bridge: Wilkinson® WVS130-2P Tremolo
Pickguard: None
Pickup Covers: Black
Control Knobs: Speed Knob
Switch Tip: Black
Hardware Finish: Chrome

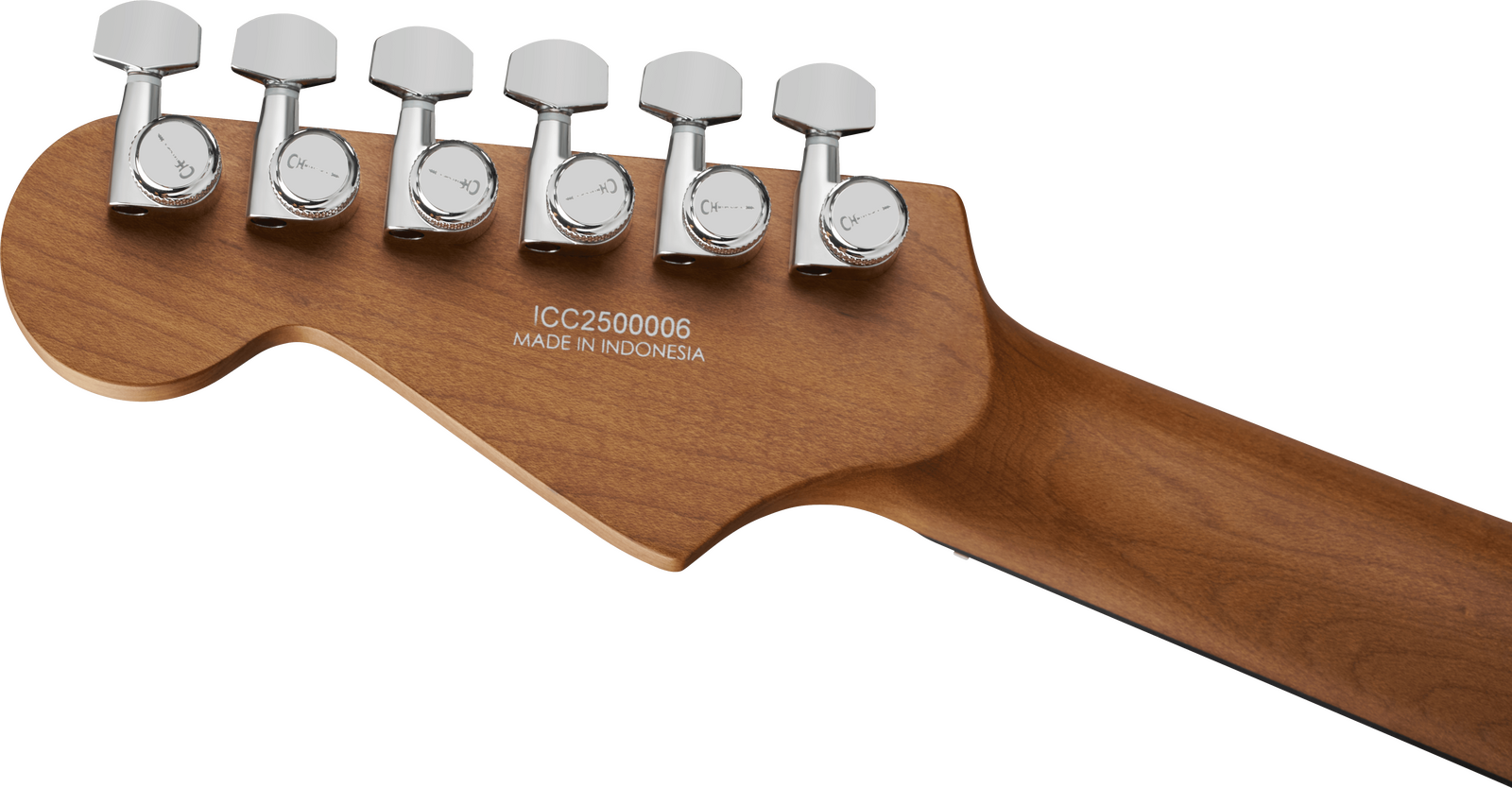

Tuning Machines: Charvel®-Branded Die-Cast Locking
String Trees: Fender® Standard String Guide
Strings: Nickel Plated Steel (.009-.042 Gauges)
Tremolo Arm: Wilkinson®
Neck Plate: None - 4-Bolt Sculpted Heel
Strap Buttons: Standard

Electronics
Bridge Pickup: Seymour Duncan® Full Shred™ TB-10
Neck Pickup: Seymour Duncan® Alnico II Pro™ APH-1N
Pickup Configuration: HH
Controls: Volume (500K EVH® Bourns® Low Friction Pot), No-Load Tone
Switching: 5-Position Blade: Position 1. Bridge Pickup, Position 2. Both Outer Coils, Position 3. Bridge and Neck Pickup, Position 4. Both Inside Coils, Position 5. Neck Pickup
Auxiliary Switching: 2-Position Mini Toggle Down/All Series, Up/All Parallel

Measurements
Shipping Dimensions: 4.00x21.00x50.00 IN
Shipping Weight: 17.19 LB
Shipping Length: 50.00 IN
Shipping Height: 4.00 IN
Shipping Width: 21.00 IN
