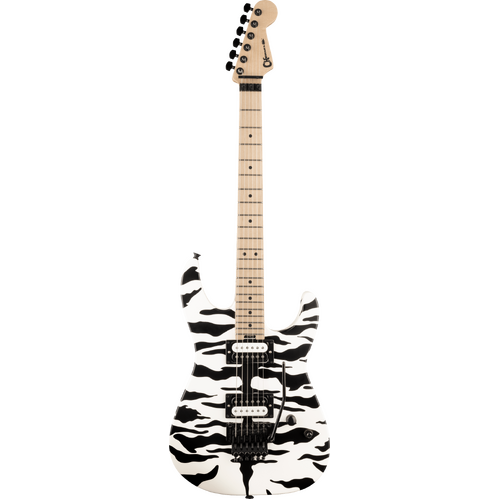

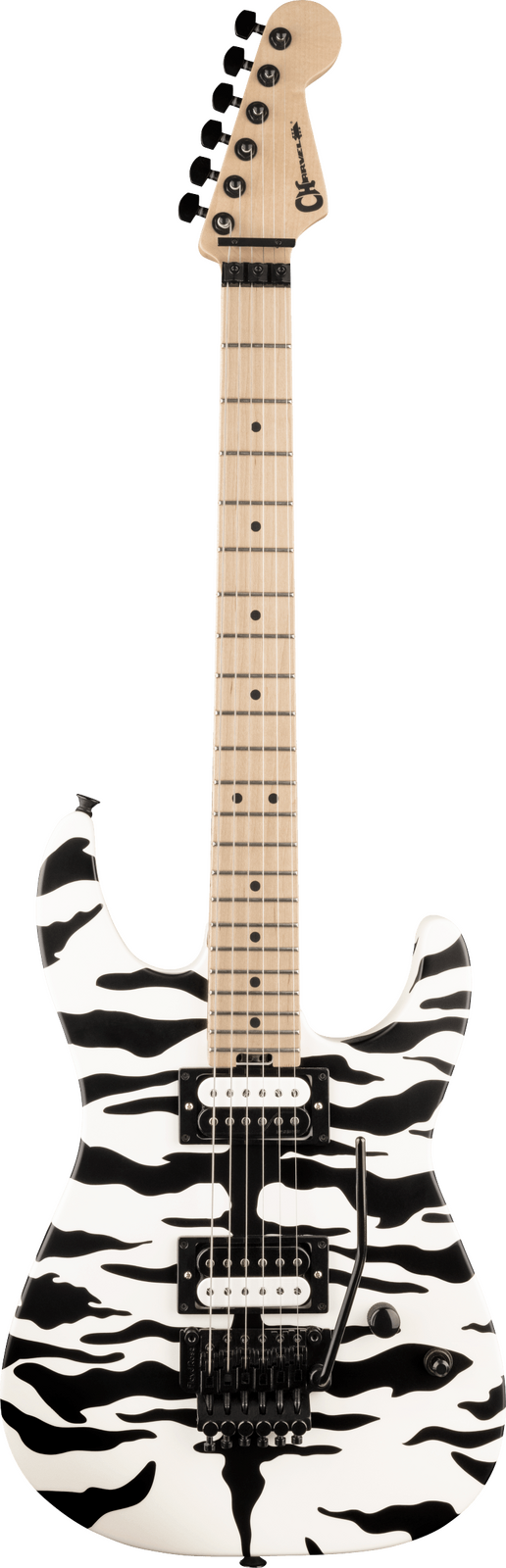

Charvel Satchel Signature Pro-Mod DK22 HH FR M Satin White Bengal

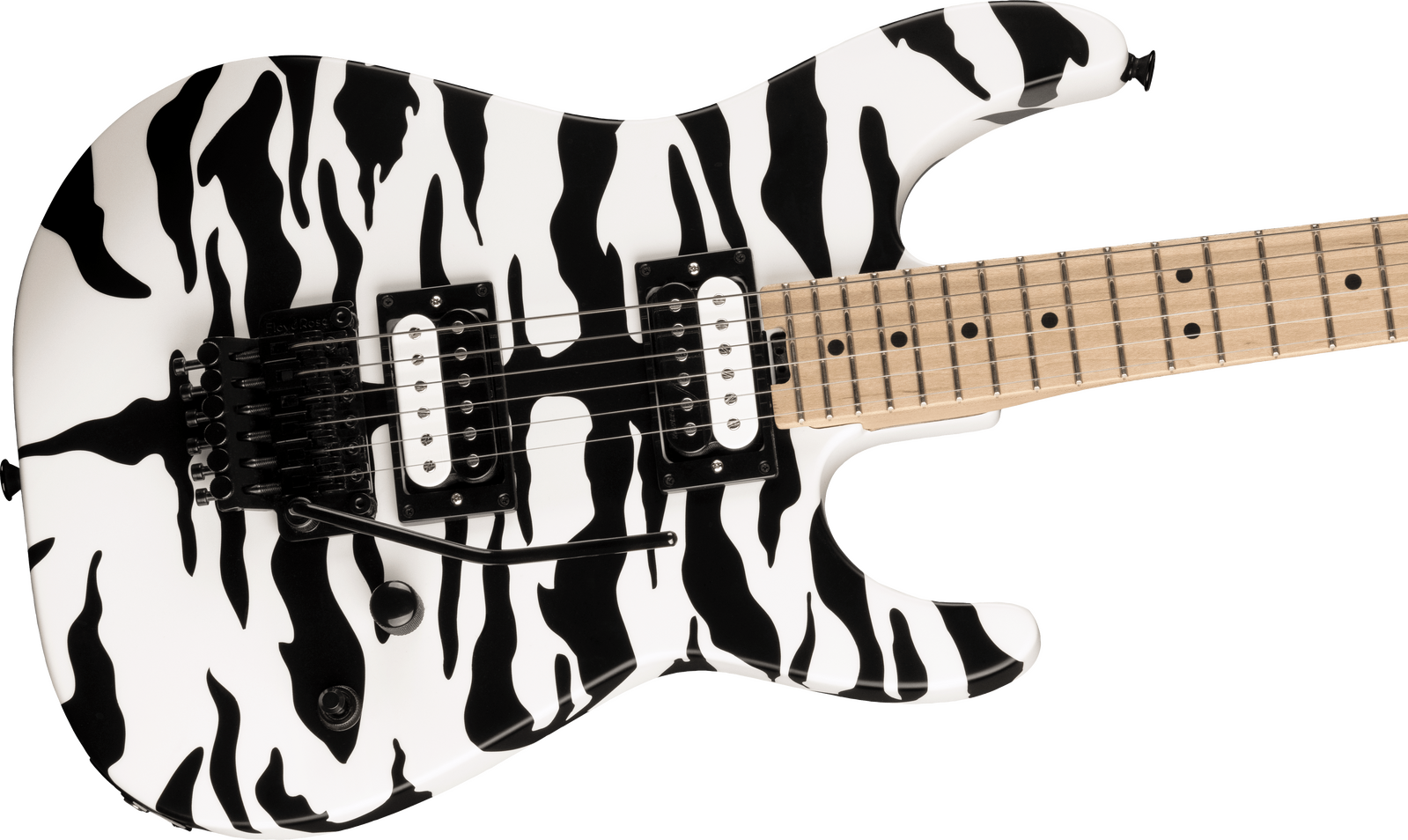

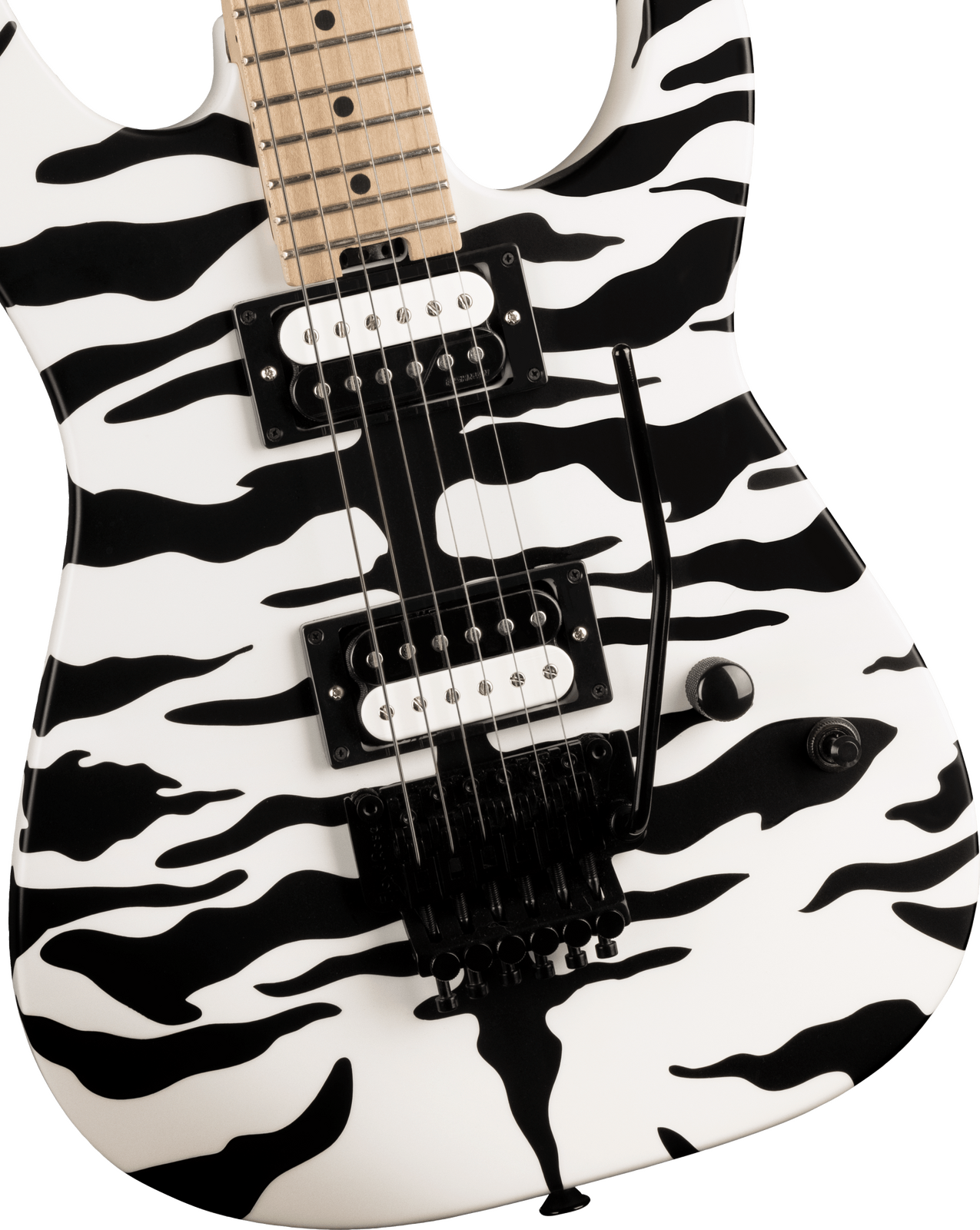

The instrument has an alder Dinky® body with sharper-radius top edges and a flamboyant tiger sriped finish. Of special note are the two Fishman® Fluence® Classic humbucking pickups topped with black/purple bobbins, which share a single volume control knob with special push/pull dual voice activation. Using this control, the PRF-CHB neck pickup delivers ideal-but-elusive vintage PAF humbucking neck pickup tone with just the right dynamics and output (voice one), or a Fluence-exclusive neck tone with clear and airy chime, unreal high end, highly vocal midrange and tight lows (voice two). Similarly, the PRF-CHB bridge pickup delivers ideal vintage PAF humbucking tone calibrated for perfect output (voice one), or quintessential hot-rodded humbucking bridge tone without all the baggage (voice two). You get the idea - it sounds %$#@& huge.

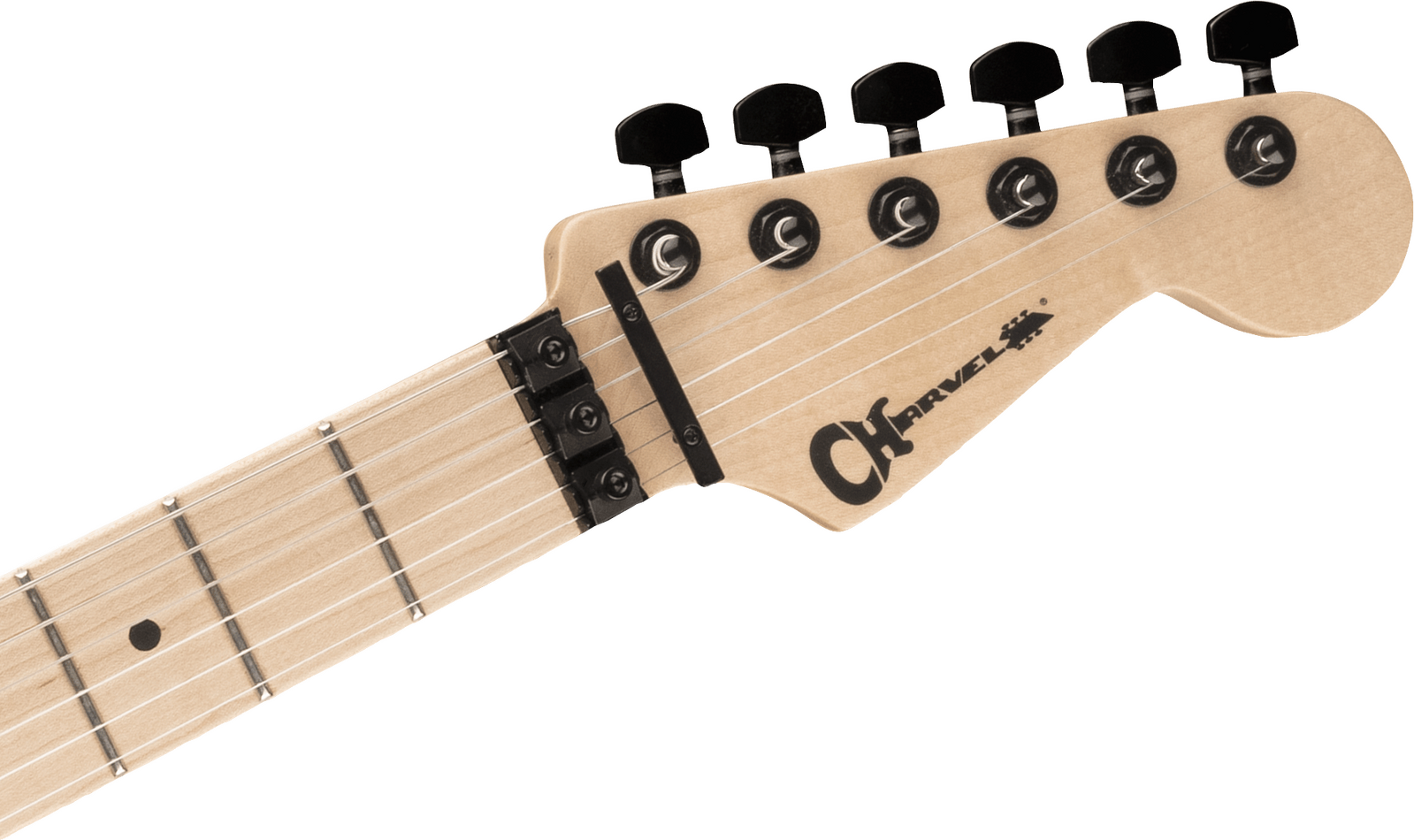

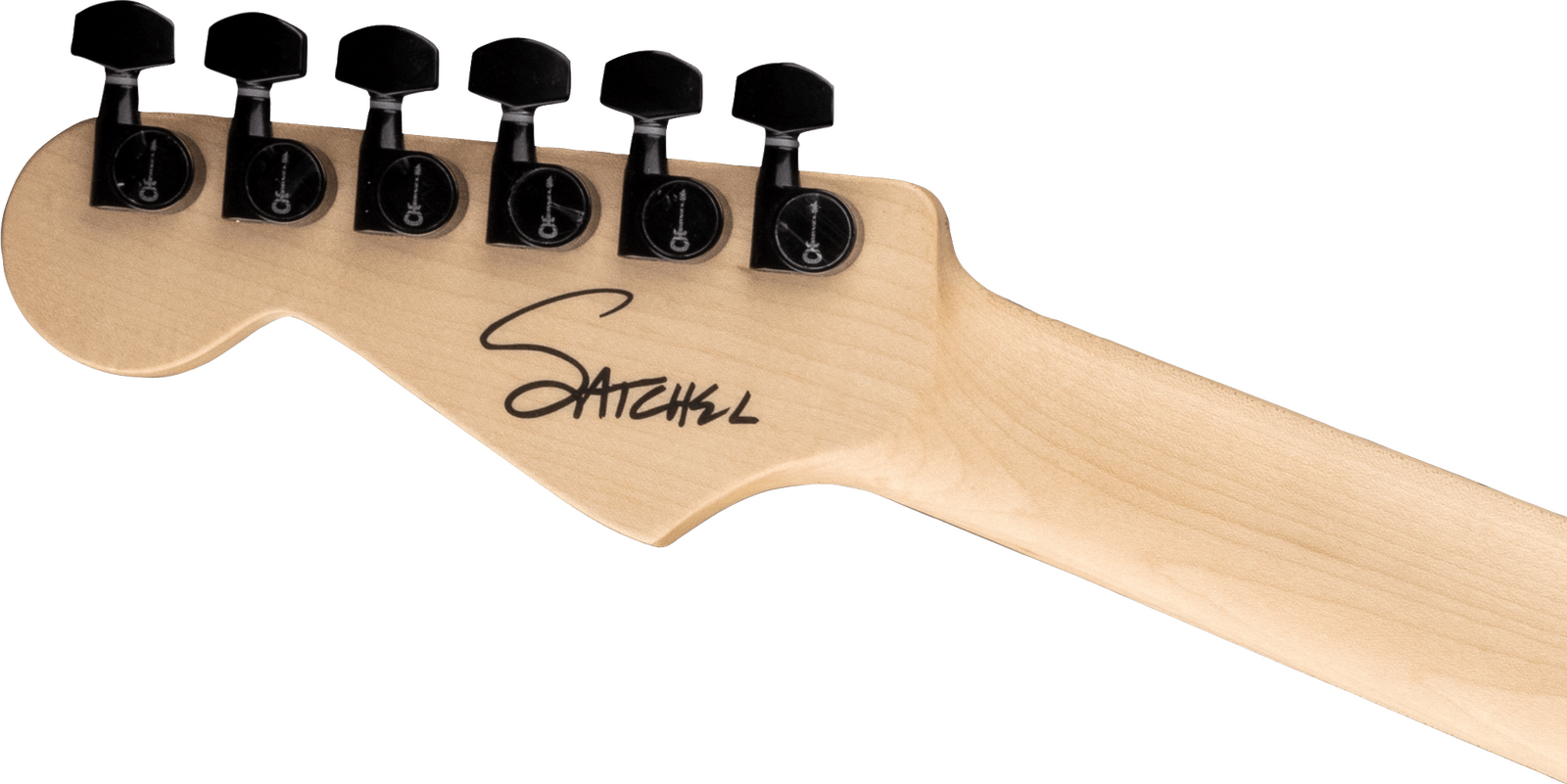

The bolt-on maple neck has a Fender® Stratocaster® headstock with Charvel-branded die-cast tuners, graphite reinforcement, heel-mount truss rod adjustment wheel and Charvel neck plate. Atop that is a 12"-16" compound-radius maple fingerboard with 22 jumbo frets and black dot inlays. Other features include a three-way toggle pickup switch, top-loaded Floyd Rose® 1000 Series double-locking tremolo bridge system, and more.

FEATURES

• 25.5 scale length

• Alder Dinky® body

• Bolt-on maple neck with graphite reinforcement and hand-rubbed satin urethane finish on the back

• 12"-16" compound radius maple fingerboard with 22 jumbo frets and black dot inlays

• Heel-mount truss rod adjustment wheel

• Fishman® Fluence® Classic PRF-CHB bridge and neck pickups (uncovered with black and white bobbins)

• Active electronics

• Three-way pickup toggle switch and volume (push/pull voice activation) control

• Top-loaded Floyd Rose® 1000 Series double-locking tremolo bridge system

• Charvel-branded sealed die-cast tuners and Charvel neck plate

• Available in Satin White Bengal with black hardware and licensed Fender® Strat® headstock

SPECIFICATIONS

General
Series: Artist Signature
Orientation: Right-Hand
Color: Satin White Bengal
Country Of Origin: MX
Platform: Artist

Neck
Headstock: Licensed Fender® Stratocaster®
Neck Material: Maple
Neck Finish: Hand-Rubbed Satin Urethane
Neck Shape: Speed Neck with Rolled Fingerboard Edges
Neck Construction: Bolt-On with Graphite Reinforcement
Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
Fingerboard Material: Maple
Position Inlays: Black Dot
Side Dots: Black
Number of Frets: 22
Truss Rod: Dual-Action with Wheel
Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
String Nut: Floyd Rose® 1000 Series Locking
Nut Width: 1.6875" (42.86 mm)
Nut Material: Floyd Rose® 1000 Series Locking
Fret Size: Jumbo
Scale Length: 25.5" (64.77 cm)

Body
Body: Alder
Body Finish: Satin
Body Shape: Dinky®
Body Style: Solid Body
Body Material: Alder

Hardware
Bridge: Floyd Rose® 1000 Series Double-Locking Tremolo (Top-Loaded)
Pickguard: None
Pickup Covers: Zebra (Black/White)
Control Knobs: Dome-Style
Switch Tip: Black
Hardware Finish: Black
Tuning Machines: Charvel®-Branded Die-Cast
String Trees: Floyd Rose® Retainer Bar
Strings: Nickel Plated Steel (.009-.042 Gauges)
Tremolo Arm: Floyd Rose® 1000 Series Locking
Neck Plate: 4-Bolt Serialized
Strap Buttons: Standard

Electronics
Bridge Pickup: Fishman® Fluence® Classic PRF-CHB
Neck Pickup: Fishman® Fluence® Classic PRF-CHB
Pickup Configuration: HH
Controls: Volume (Push/Pull Voice Activation)
Switching: 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup
Special Electronics: Active Electronics

Measurements
Shipping Dimensions: 4.50x15.00x42.00 IN
Shipping Weight: 10.75 LB
Shipping Length: 42.00 IN
Shipping Height: 4.50 IN
Shipping Width: 15.00 IN

Accessories
Saddle Height Wrench: N/A
