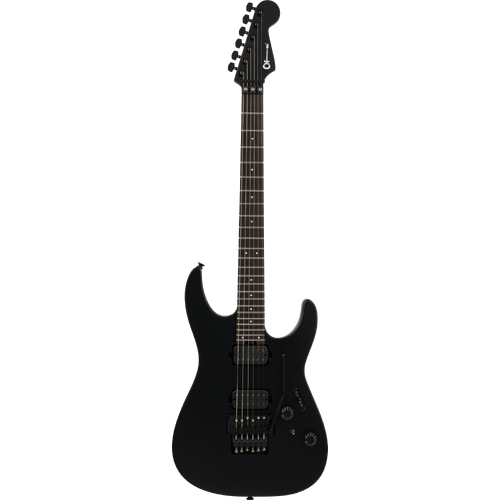

Charvel Pro-Mod Plus Dinky DK24 HH FR EB Satin Black

Please note: This guitar comes with a gig bag.

Loaded with premium features, this Pro-Mod Plus Dinky® DK24 FR model features a sleek Dinky® body constructed from basswood, sculpted shredder's cut heel and scalloped lower back bout for seamless access to the upper registers. The bolt-on caramelized maple neck features graphite reinforcement for rock-solid stability, a satin natural finish on the back of the neck for sublime playability, and a conveniently located heel-mount truss rod adjustment wheel for neck relief tweaks on the fly. Designed for speed, the 12"-16" compound radius ebony fingerboard features comfortable rolled edges, 24 stainless steel jumbo frets and Luminlay® side-dots for enhanced visibility in low-light conditions.

This axe features an HH pickup configuration consisting of a direct mount Seymour Duncan® Nazgul™ bridge pickup and direct mount Seymour Duncan® Sentient™ neck pickup. The Nazgul bridge pickup delivers crushing output with tight bass response and searing treble clarity, while the Sentient neck pickup provides smooth, warm tones with excellent string separation and harmonic richness.

Other premium modern features include a five-way blade pickup switch, 2-position mini toggle switch (Down/All Series, Up/All Parallel), speed knobs for the volume and no-load tone controls, Floyd Rose® 1500 Series recessed double-locking tremolo bridge, Charvel®-branded die-cast locking tuners and deluxe gig bag.

Blending sophisticated style with assertive tone, the Pro-Mod Plus Dinky® DK24 FR HH delivers premium performance and modern features.

FEATURES

• Basswood body

• Bolt-on caramelized maple neck with graphite reinforcement

• 12"-16" compound radius ebony fingerboard with 24 jumbo stainless steel frets

• Seymour Duncan® Nazgul™ bridge and Sentient™ neck pickups

• Floyd Rose® 1500 Series recessed double-locking tremolo bridge

• 5-way blade pickup switch with 2-position mini toggle (Series/Parallel)

• Speed knobs for volume and no-load tone controls

• Charvel-branded die-cast locking tuners

• Luminlay® side dots for low-light visibility

• Sculpted shredder's cut heel and scalloped lower back bout

• Heel-mount truss rod adjustment wheel

• Includes deluxe gig bag

SPECIFICATIONS

General
Series: Pro-Mod Plus
Orientation: Right-Hand
Color: Satin Black
Country Of Origin: ID

Neck
Headstock: Licensed Fender® Stratocaster®
Neck Material: Caramelized Maple
Neck Finish: Natural Satin
Neck Construction: Bolt-On with Graphite Reinforcement
Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
Fingerboard Material: Ebony
Position Inlays: 4mm Pearloid Dot
Side Dots: Luminlay®
Number of Frets: 24
Truss Rod: Dual-Action with Wheel
String Nut: Floyd Rose® 1500 Series Locking
Nut Width: 1.6875" (42.86 mm)
Nut Material: Floyd Rose® 1500 Series Locking
Fret Size: Jumbo Stainless Steel
Scale Length: 25.5" (648 mm)

Body
Body: Basswood
Body Shape: Dinky®
Body Style: Solid Body
Body Material: Basswood

Hardware
Bridge: Floyd Rose® 1500 Series Double-Locking Tremolo
Pickup Covers: Black
Control Knobs: Speed Knob
Hardware Finish: Black
Tuning Machines: Charvel®-Branded Die-Cast Locking
Strings: Nickel Plated Steel (.009-.042 Gauges)
Tremolo Arm: Floyd Rose® 1500 Series Locking
Neck Plate: None - 4-Bolt Sculpted Heel

Electronics
Bridge Pickup: Seymour Duncan® Nazgûl
Neck Pickup: Seymour Duncan® Sentient
Pickup Configuration: HH
Controls: Volume (with 500K Low Friction Pot), No-Load Tone
Switching: 5-Position Blade: Position 1. Bridge Pickup, Position 2. Both Outer Coils, Position 3. Bridge and Neck Pickup, Position 4. Both Inside Coils, Position 5. Neck Pickup
Auxiliary Switching: 2-Position Mini Toggle Down/All Series, Up/All Parallel

Measurements
Shipping Dimensions: 4.70x15.30x42.50 IN
Shipping Weight: 12.79 LB
Shipping Length: 42.50 IN
Shipping Height: 4.70 IN
Shipping Width: 15.30 IN
