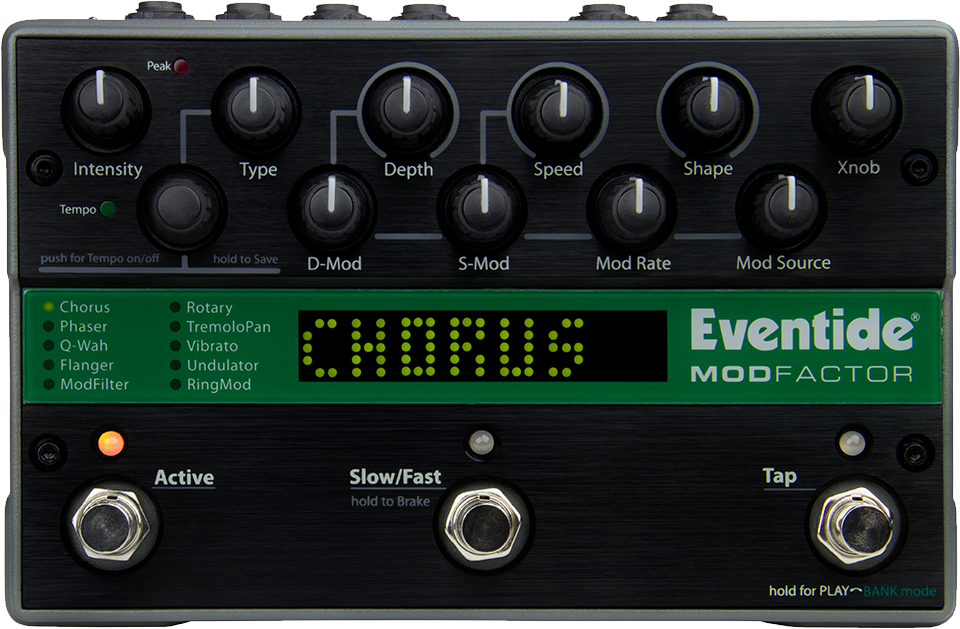

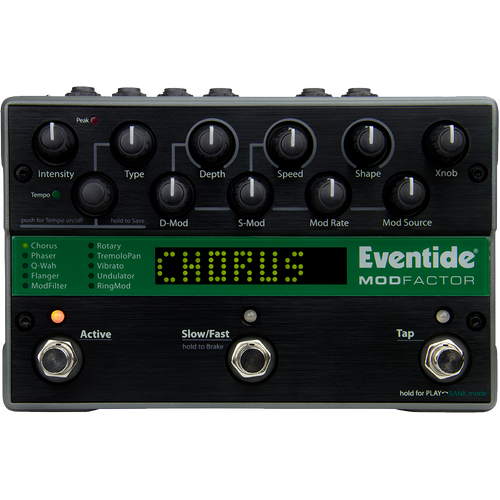

Eventide ModFactor

Modulate Your Modulator

All the standards — Chorus, Flanger, Phaser as well as Rotary, Tremolo, and Vibrato are there. Also included is the unique Undulator effect from the H8000 and a RingMod that lands somewhere between ring modulation and synthesis. The dedicated SLOW/FAST footswitch for ramping the LFO rate comes in handy. LFO rates can also sync to Tap Tempo and MIDI clock.

FEATURES

• Two LFOs create rich expressive modulation effects.

• 100 Presets

• Studio-Quality Sound

• Instant Program Change

• Real-time control with 10 knobs, MIDI or expression pedal

• Tap Tempo and MIDI Clock Sync/Generate

• True Analog Bypass

• Rugged cast metal construction

• Metal footswitches for instant Preset access

• Mono or Stereo operation

• Guitar or Line Level Inputs and Outputs

ModFactor includes the following Eventide signature stereo or mono effects:
Phaser:

• Negative Phaser

• Postive Phaser

• BiPhase Phaser

• Feedback Phaser

• PhaseX0 Phaser

Chorus:

• Liquid Chorus

• Shimmer Chorus

• Organic Chorus

• Classic Chorus

Wah:

• WahWah Q-Wah

• Voc-Wah Q-Wah

• Bass Wah

• Bass Vocal Wah

Flanger:

• Positive Flanger

• Negative Flanger

• Jet Flanger

• Thru Zero Flanger

ModFilter:

• Lowpass ModFilter

• HiPass ModFilter

• BandPass ModFilter

Vibrato:

• Modern Vibrato

• Vintage Vibrato

• Retro Vibrato

Rotary:

• Standard Rotary

• Giant Rotary

Tremolo:

• Bias Tremolo

• Opto Tremolo

Undulator:

• Pitch Undulator

• Feedback Undulator

Ring Modulator:

• Ring (DC) Ringmod

• String (AC) Ringmod

SPECIFICATIONS

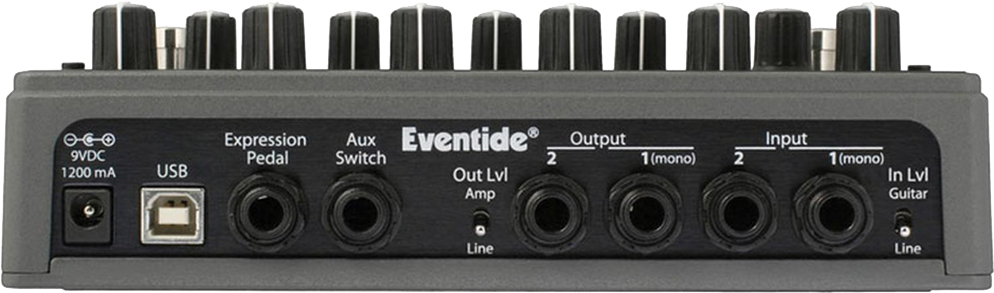

Connectors
Input 1 (mono): ¼ inch mono phone jack
Input 2: ¼ inch mono phone jack
Output 1 (mono): ¼ inch mono phone jack
Output 2: ¼ inch mono phone jack
Expression Pedal: ¼ inch mono phone jack
Aux Switch: ¼ inch mono phone jack
USB: Type B Socket. Use 2.0 cables only
MIDI In: Five pin DIN (Female)
MIDI Out/Thru: Five pin DIN (Female)
AC Adapter Jack: US Power Supply included

Analog I/O
Input Impedance: 500K ohms
Output Impedance: 470 ohms
Recommended Load Impedance: 10K ohms or greater

Specifications
Power: 9V DC 500mA, Center positive (+), 5.5mm/2.5mm jack
Dimensions: English: 4.8″ (H) x 7.5″ (W) x 2.12″ (D) / Metric: 122 (H) x 190 (W) x 54 (D) mm
Weight: 2.15 lbs, 1kg
