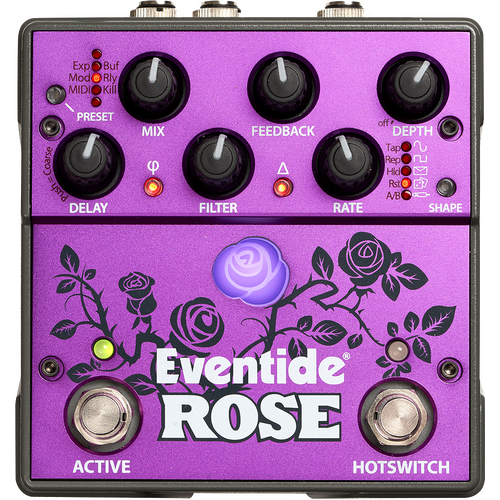

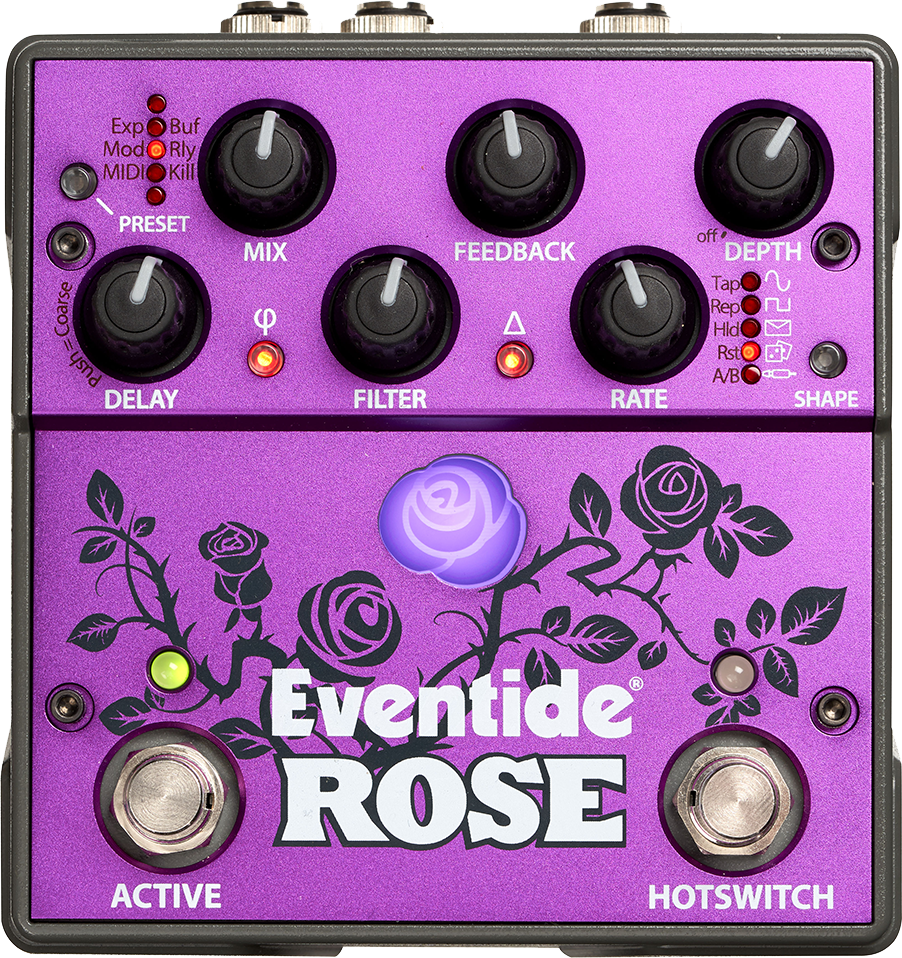

Eventide Rose

A Modulated Delay Like No Other

From reverse delays, slapback, chorus, and everything in between, Rose is capable of producing a wide range of sounds. The perfect hybrid of analog and digital, the pedal features five different modulation sources, delay multiplier, phase invert/reverse, 25 customizable presets, true analog dry path, MIDI, and AUX/Expression via TRS for ultimate versatility, on stage or in the studio.

FEATURES

• Analog dry path with analog Mix, Filter, and Feedback

• Comes with 25 factory presets (5 banks with 5 presets each)

• Standard delay times from 10 sec to 10 μsec

• Modulation sweep from 1/2 to 2x the standard delay time, simultaneously modulating pitch across a full octave +/-

• Selectable modulation source: Sine / Square / Random / Envelope / External (CV)

• Tap Division selection (quarter, eighth, dotted eighth, triplet)

• MIDI Tap Tempo & Clock Receive

• Reverse delay function for backwards delays

• Invert function flips the phase of the delayed signal

• Delay Multiply (2X, 3X, 4X, 5X) for delays up to 50 sec

• Assignable Hotswitch: Tap Tempo / Infinite Repeat / A/B switching / LFO Hold / LFO Reset

• Input Level Select Switch: Line / Instrument

• TRS/TS Input for expression pedal, auxiliary Switch and MIDI

• Selectable Bypass: Relay / Buffered / Input Kill

• USB for use with Eventide Device Manager (manage presets, settings, MIDI and more)

• Software V3 offers MIDI Tap Tempo & Clock Receive, Kill-Dry mode, and “Envelope Off” mode

Explore 25 Customizable Presets
Rose comes with 25 factory presets, divided among 5 banks with 5 presets each. The sound is exquisite and the range of effects wide. Users can customize or create their own with the Device Manager software.

Bank 1
Preset 1: A: Lead Delay / B: Reverse
Preset 2: A: Chorus / B: Leslie
Preset 3: A: Slapback / B: Frenetic Filter
Preset 4: A: Dirty Dub Delay
Preset 5: A: Infinite Pitch Bend

Bank 2
Preset 1: A: Crepitate / B: Rustle
Preset 2: A: GreenThumb / B: OverBloom
Preset 3: A: Essence / B: RoseHips
Preset 4: A: FlyTrap / B: BugEyed
Preset 5: A: FiveMind / B: DroneDance

Bank 3
Preset 1: A: Wilting / B: Waxing
Preset 2: A: Spores / B: Halos
Preset 3: A: ReOscillate / B: RePollinate
Preset 4: A: BlossomTrail / B: AromaTherapy
Preset 5: A: GreenHouse / B: WindowSill

Bank 4
Preset 1: A: JustInVase / B: BouquetDecay
Preset 2: A: Organ-ic / B: Cyanic
Preset 3: A: RosesAreThread / B: VioletsAreThrough
Preset 4: A: Topiaryl / B: Airy
Preset 5: A: PlanterBox / B: FertileStalks

Bank 5
Preset 1: A: SweetHearts / B: ValenTines
Preset 2: A: CitizenCaninae / B: Roseb
Preset 3: A: CutAndDried / B: RowsofRose
Preset 4: A: Hybridl / B: HydRate
Preset 5: A: Rosenate / B: Sonorose

SPECIFICATIONS

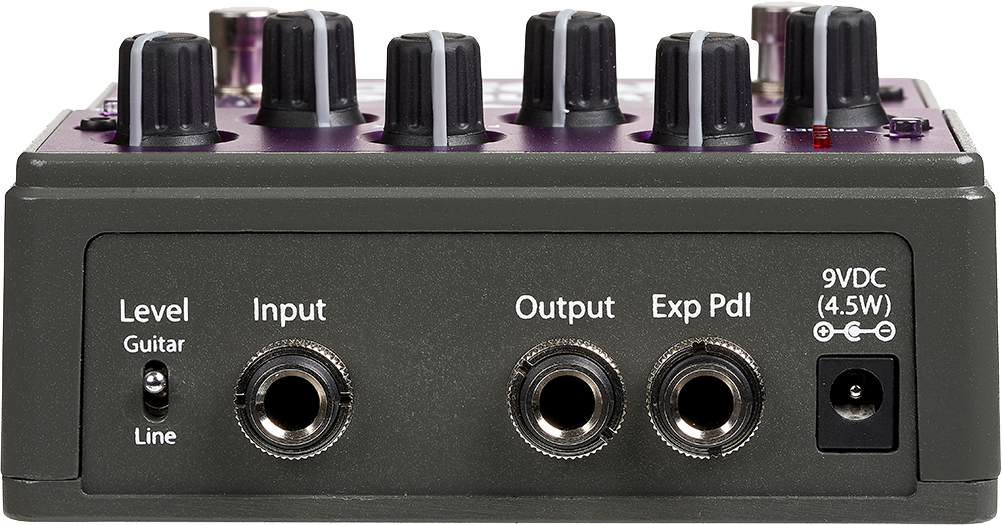

Connectors

Input: ¼ inch mono phone jack
Output: ¼ inch mono phone jack
Mini USB: Use 2.0 cables only
Expression Pedal / Aux Switch / MIDI: ¼ inch mono phone jack

Analog I/O
Input Impedance: 600k ohms
Output Impedance: 470k ohms
Recommended Load Impedance: 10k ohms or greater

Specifications
Power: 9V DC @ 200mA / Center Negative (-), 5.5mm/2.1mm jack (BOSS standard)
Dimensions (Product): 5.5″ W x 8″ D x 2.5″ H / 139.7 mm x 203.2 mm x 63.5 mm
Weight (Product): 2.5 lb / 1.1 kg
