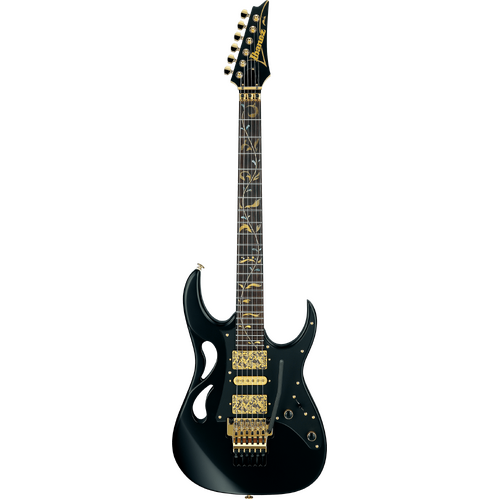

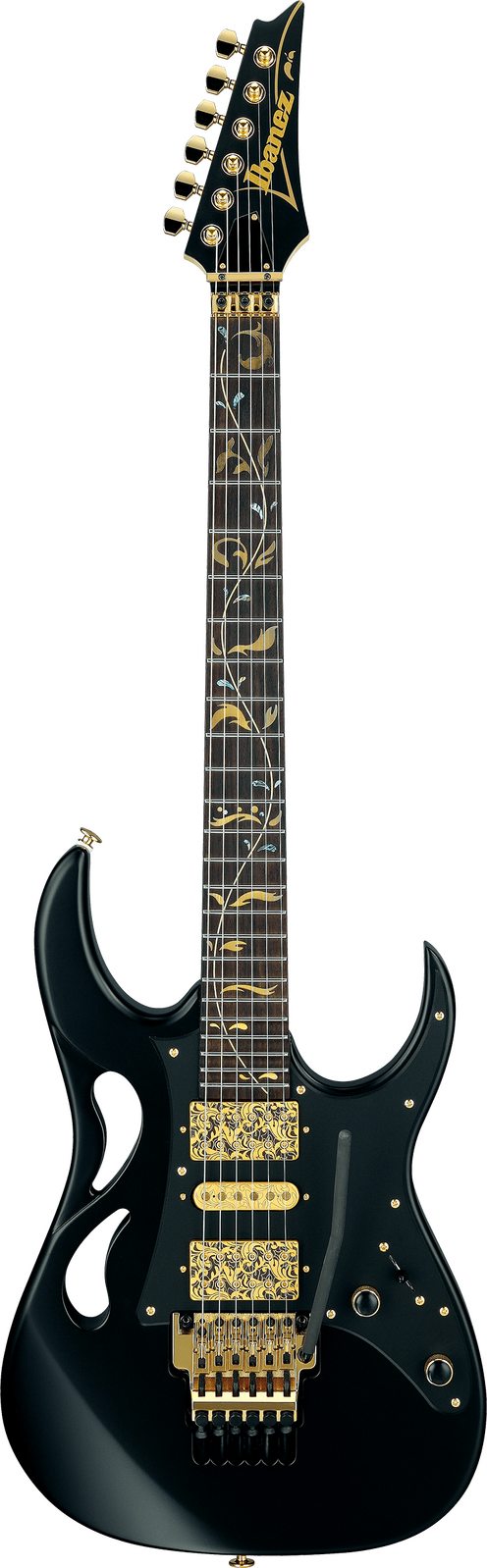

Ibanez PIA3761 XB Onyx Black

Steve Vai Signature


Please note: This guitar comes with a hardshell case.

PIA Blossom inlay
The newly designed PIA Blossom inlay is gorgeous, prominent, and elegantly imparts Steve Vai’s trademark style and artistic vision.

Petal Grip
Exclusively designed for the PIA, the new Petal Grip offers a balanced, contemporary design aesthetic. It’s also meant to symbolize unity, companionship, and interpersonal bonds.

DiMarzio® UtoPIA™ pickups
Based on Steve's latest tonal preferences, DiMarzio® UtoPIA™ pickups are voiced for smoother highs, more scooped mids, and more pronounced low-end. The pickups incorporate beautiful aesthetics and design elements meant to complement the cosmetic features of the guitar.

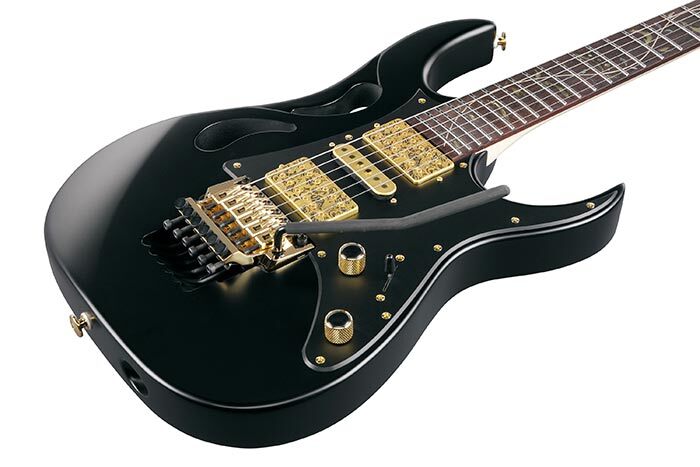

Edge Tremolo
The Edge tremolo bridge and groundbreaking Lion's Claw tremolo cavity allow for rapidly increasing and lowering pitch with dramatic range and an intense voice.

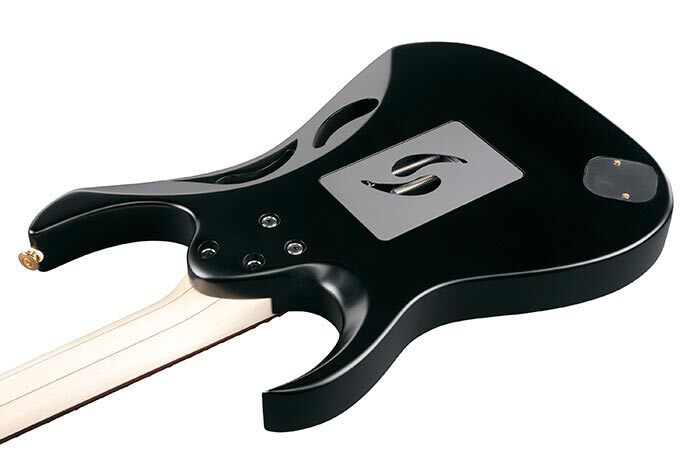

Magnetic Tremolo Cavity Plate
The tremolo cavity plate is held in place magnetically, allowing for quick removal and reinstallation when changing strings or adjusting the tremolo system.

SPECIFICATIONS

Neck Type: PIA / 5pc Maple/Walnut neck
Top/Back/Body: Alder body
Fretboard: Rosewood fretboard / PIA Blossom inlay
Fret: Jumbo Stainless Steel frets / Prestige fret edge treatment
Number of Frets: 24
Bridge: Edge bridge
String Space: 10.8mm
Neck Pickup: DiMarzio® UtoPIA™ (H) neck pickup (Passive/Ceramic)
Middle Pickup: DiMarzio® UtoPIA™ (S) middle pickup (Passive/Alnico)
Bridge Pickup: DiMarzio® UtoPIA™ (H) bridge pickup (Passive/Ceramic)
Factory Tuning: 1E,2B,3G,4D,5A,6E
Strings: D'Addario® EXL120
String Gauge: .009/.011/.016/.024/.032/.042
Nut: Locking nut
Hardware Color: Gold
Neck Scale: 648mm/25.5"
Neck Width at NUT: 43mm
Neck Width at 24F: 58mm
Neck Thickness at 1F: 18mm
Neck Thickness at 12F: 20mm
Neck Radius: 430mmR
