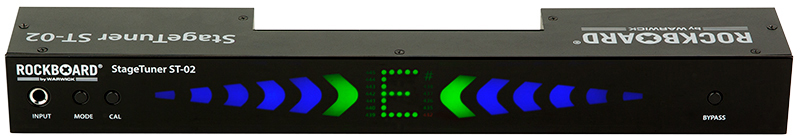

RockBoard Stage Tuner ST-02
Chromatic Rack Tuner
In stock at warehouse.
Allow additional days for shipping or to collect in-store.
Important Warehouse Shipping Information
Our website has the ability to display products that are in stock at our various supplier warehouses around the country, which allows us to provide a much broader product range for our customers. This is one of those products.
Some of our suppliers are able to ship products directly to you, while others need to ship to us before they are shipped to you. It is important to note that for products that are shipping from one of our supplier warehouses, either directly to you or via our Hobart store, we are unable to control how quickly the order will be dispatched, or the shipping method or service that will be used.
If you would like to know more information about shipping times and methods that apply to this product, please feel free to contact us.
More infoCalculate Shipping
Enter post code to calculate shipping

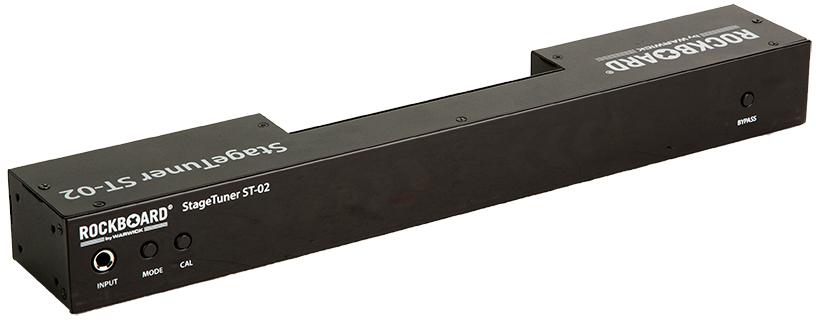

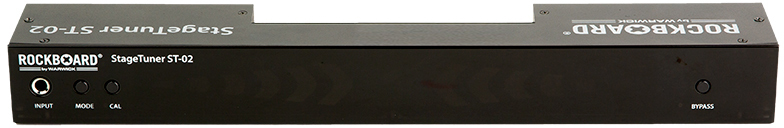

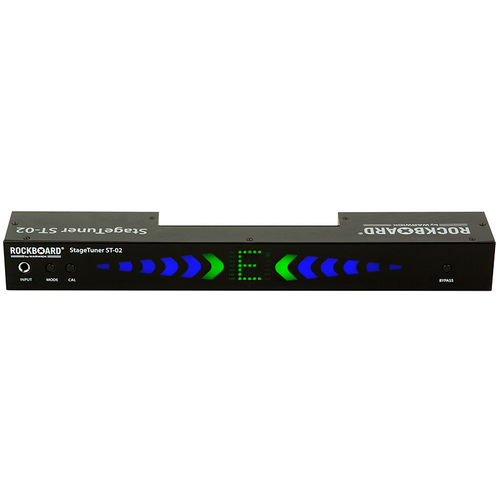

The ST-02 Stage Tuner offers all the features musicians are looking for in a chromatic rack tuner. The large, bright but not dazzling, LED display provides an easy-to-read screen that is clearly visible from several feet away. True bypass has no effect on the sound of the connected instrument, and with two inputs (one on the front and one on the rear), the Stage Tuner ST-02 can be easily integrated into any rack. The frequency of the ST-02's reference tuning tone can be adjusted in 1 Hz increments from 432 to 445 Hz, and the wide tuning range from B-1 (15.44 Hz) to C8 (4,186.0 Hz) easily covers extended range instruments or low tunings. In addition to the standard mode, in which the arrows on the left and right of the display indicate the tuning direction, the Stage Tuner offers a strobe mode for tuning the instrument. If not used in a classic 19" rack-mounted configuration, the Stage Tuner can be quickly and easily mounted on a RockBoard pedalboard using the RockBoard QuickMounts TYPE M (sold separately) for use on large pedalboards, for example. All of this makes the Stage Tuner ST-02 a perfect choice for stage, studio, rehearsal room, and virtually any other application you can think of.
SPECIFICATIONS
-
Chromatic 19" rack tuner for electrical instruments
-
Detection range: B-1 (15.44 Hz) - C8 (4,186.0 Hz), sine wave
-
Two selectable tuning modes (Standard, Strobe)
-
Precision: +/- 1 cent
-
Calibration range: 432 - 445 Hz (1 Hz steps)
-
LED display
-

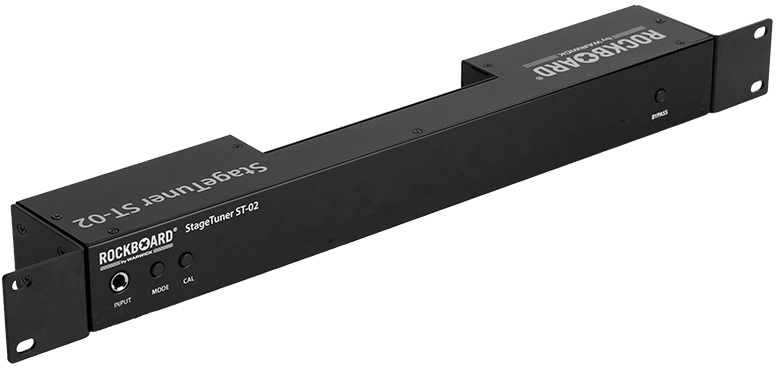

Incl. rack-mount adapters for easy mounting in 19" racks
-

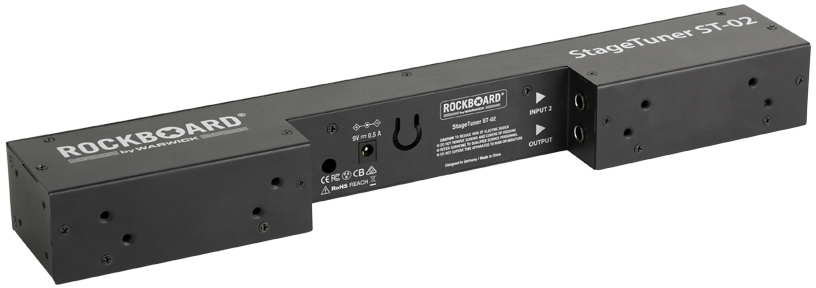

M4 threaded sockets on the back of the tuner to attach RockBoard QuickMounts TYPE M (sold separately) for quick and easy mounting on RockBoard pedalboards
-
True bypass
-
Input: 2x 6.3 mm / 1/4" mono jacks
-
Output: 1x 6.3 mm / 1/4" mono jack
-

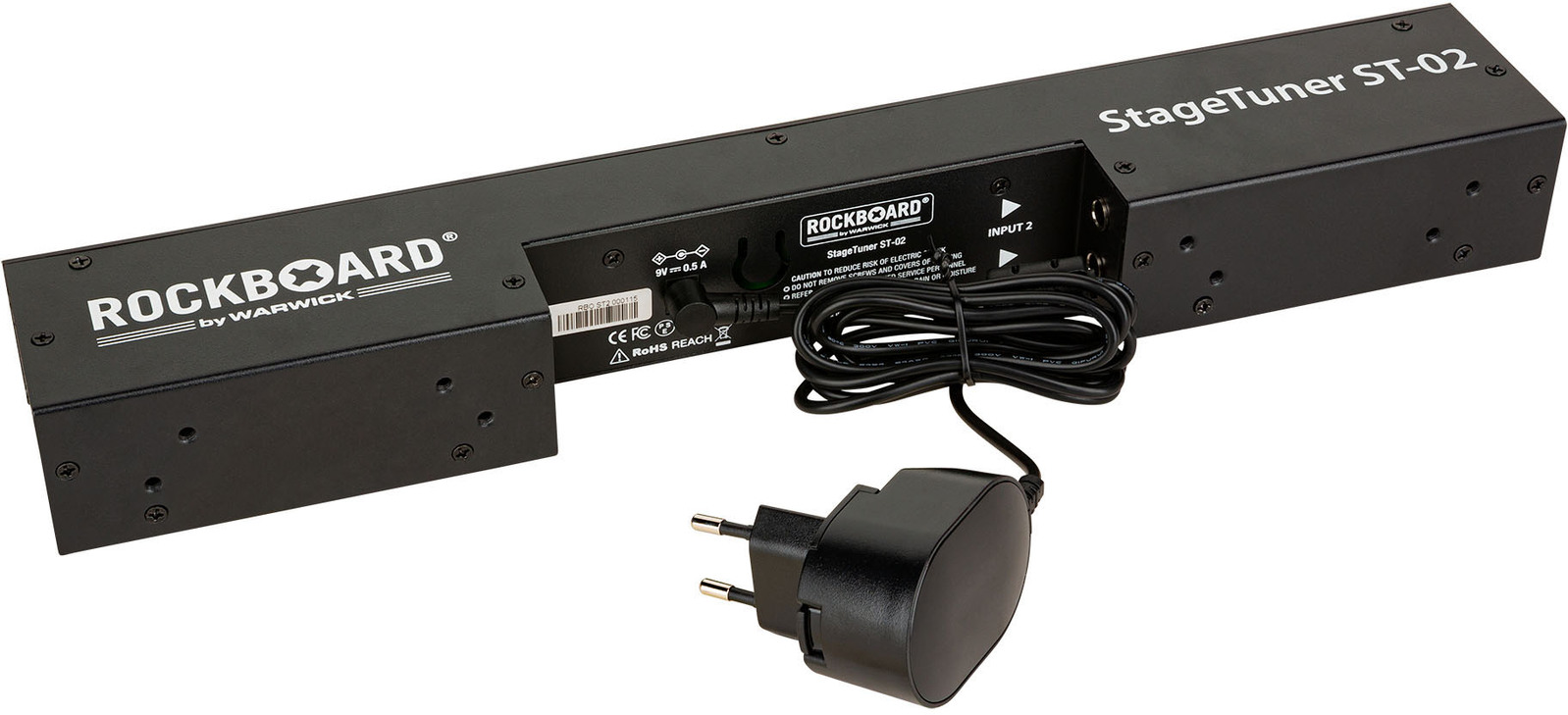

Power supply via 9V DC adapter, 2.1 x 5.5 mm barrel plug, polarity (-) center (included in the delivery)
-
Current draw: max. 250 mA
-

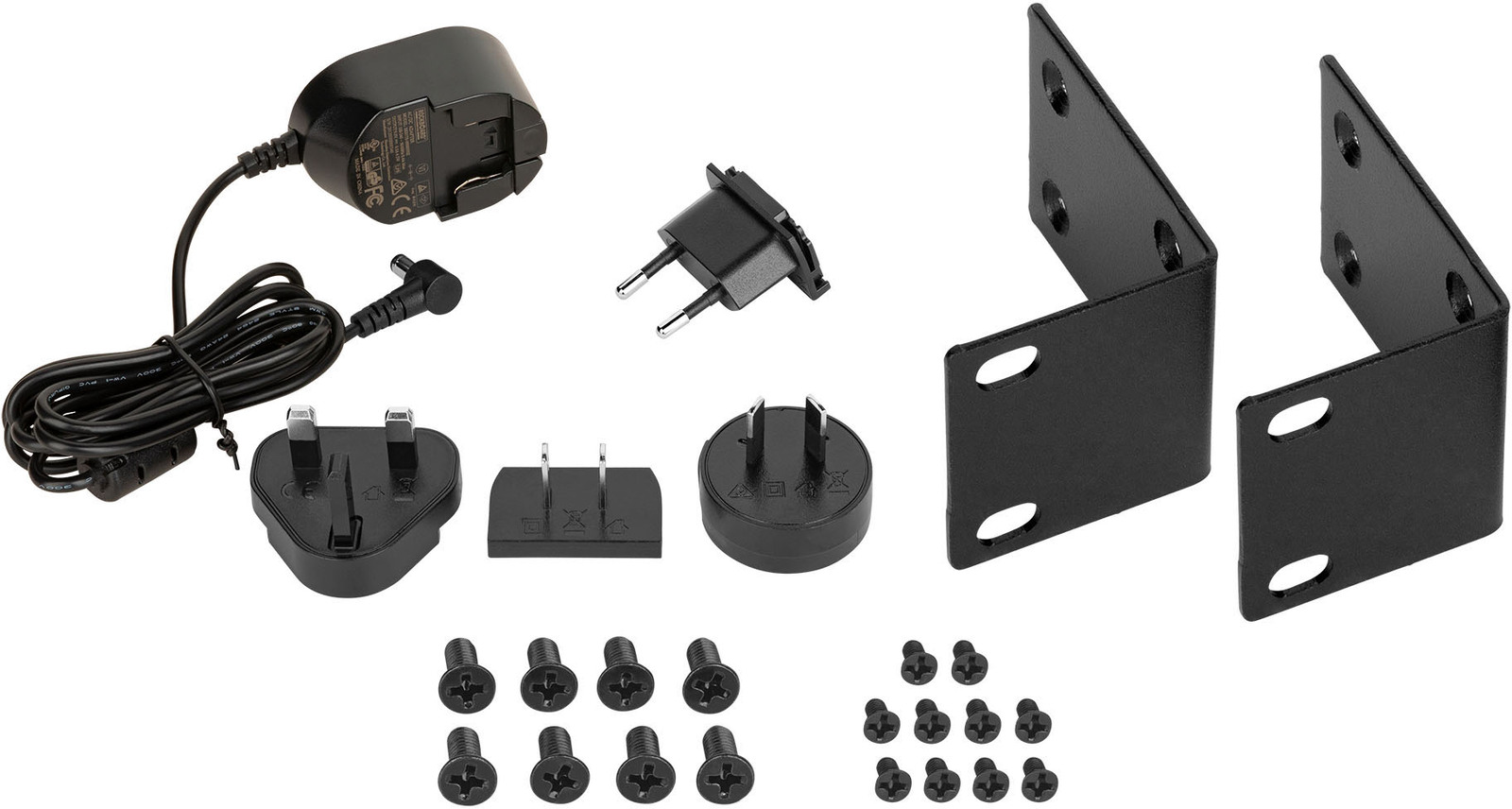

2x rack-mount adapter and 8x M4 screws for rack adapter or QuickMount (sold separately) included in the delivery
-
Dimensions (WxDxH): 395 x 63 x 44.45 mm / 15 35/64" x 2 31/64" x 1 3/4" (without rack-mount adapters)
-
Weight: 730 g / 1.6 lbs (without rack-mount adapters)
