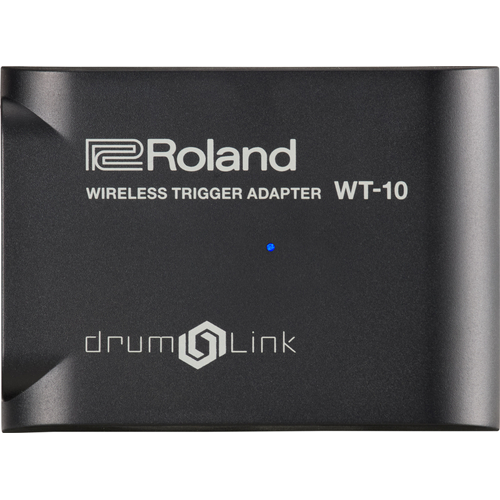

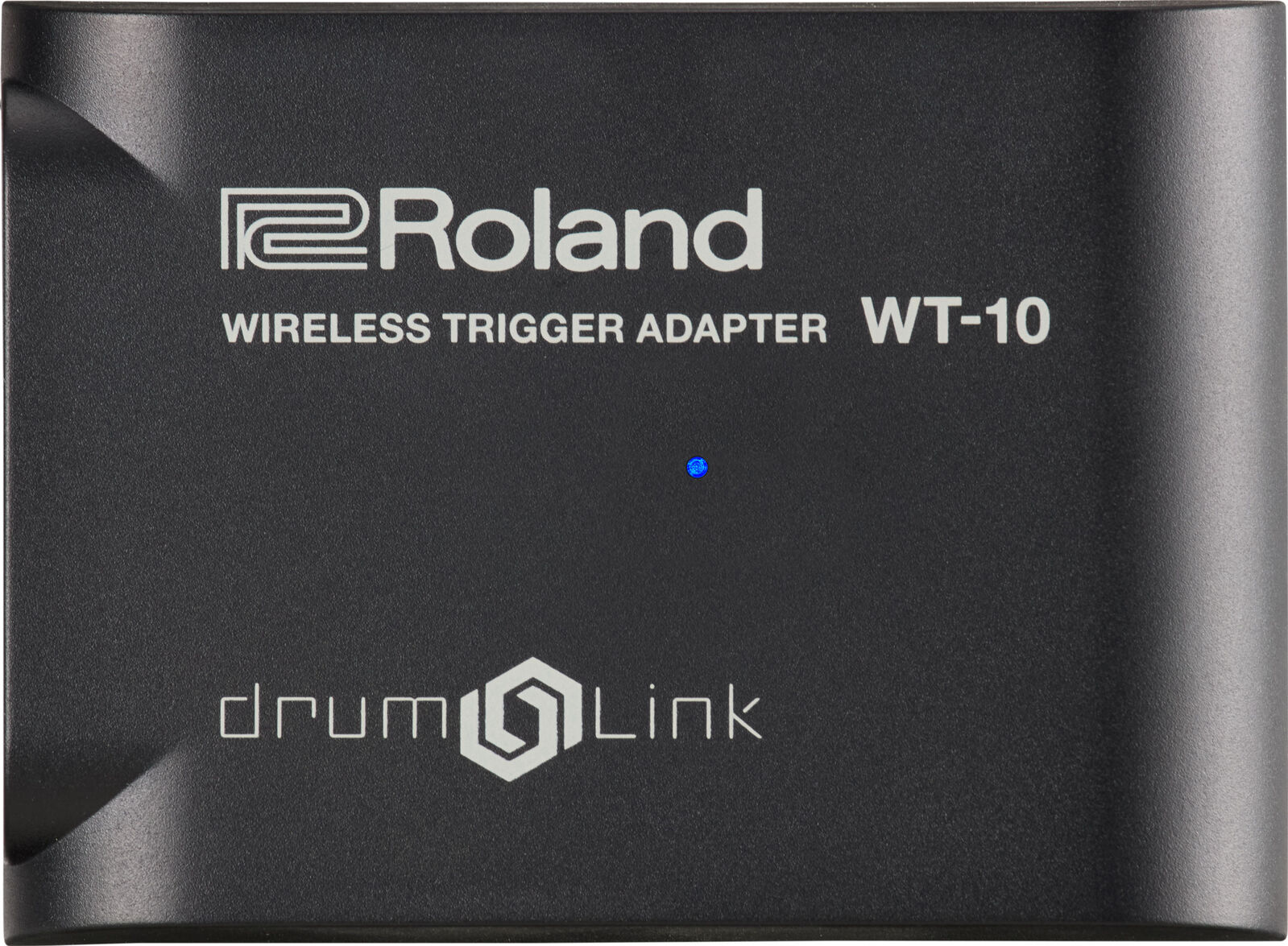

Roland WT-10

Wireless Triggering for V-Drums and Other Roland Drumming Gear

The advanced DrumLink system brings wireless trigger support to V-Drums and other Roland drumming gear. When paired with the companion DH-10 DrumLink Hub, the WT-10 Wireless Trigger Adapter converts a wired pad to wireless triggering, providing lightning-fast response, rock-solid performance, and streamlined connectivity for quicker setup and a cleaner look. The WT-10 also offers an easy way for owners of Drum Workshop’s DWe acoustic-electronic wireless convertible drums to integrate Roland pads within their sets.

FEATURES

• Wireless trigger adapter for V-Drums sets and other Roland electronic drumming products

• Communicates wirelessly with the Roland DH-10 DrumLink Hub or DWe DrumLink Wireless Hub

• Compatible with Roland drum and cymbal pads, RT-30 series acoustic drum triggers, and the BT-1 Bar Trigger Pad

• Two trigger inputs that support single- or dual-trigger products

• Connect up to two different pads to one unit, a single cymbal pad with two outputs for bow/bell/edge triggering, or hi-hat pads with two trigger/control outputs

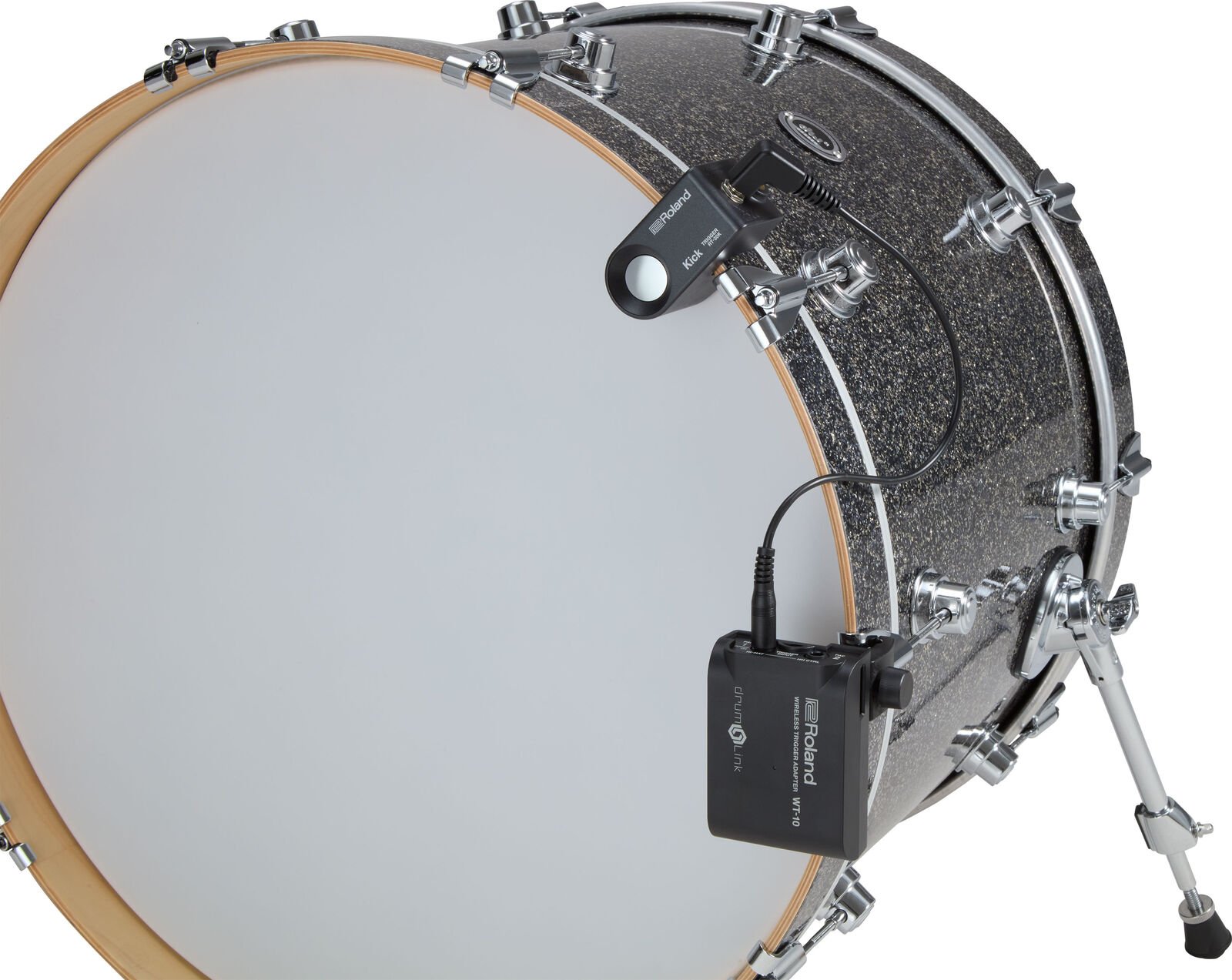

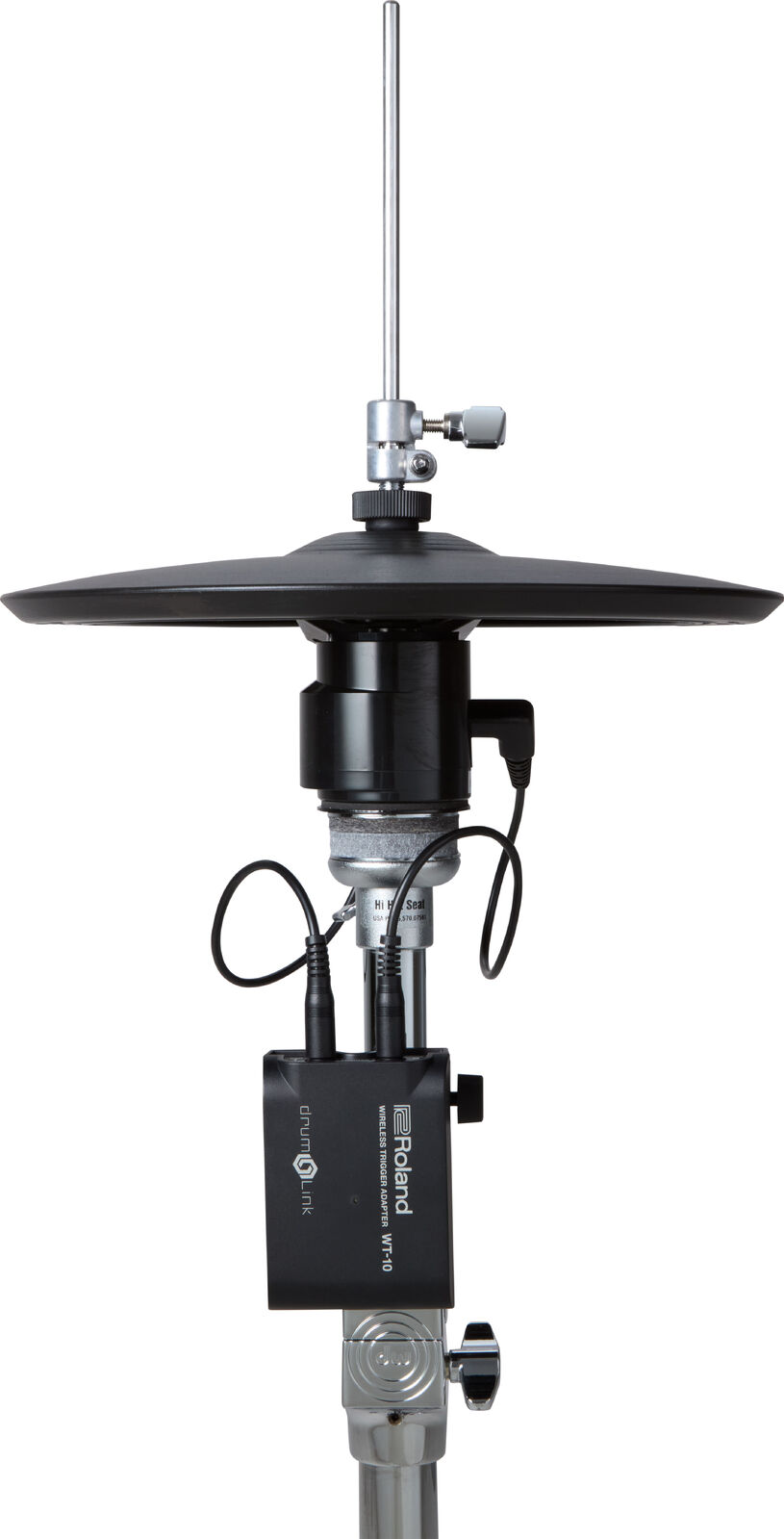

• Integrated mount for secure attachment to a drum/pad rim, bass drum hoop, or cymbal/hi-hat stand

SPECIFICATIONS

Wireless Format: Proprietary Protocol
Wireless Carrier Frequency: 2.4-2.485 GHz ISM Band
Transmission Range: 10 m (32 feet) line-of-sight
* May vary due to local conditions

Connectors
Trigger input jacks: (PAD1, PAD2)
Power Supply: Alkaline battery (AA, LR6) x 2
Battery Life: Approx. 6 months
* This can vary depending on the conditions of use.

Dimensions
Body: 70 (W) x 31 (D) x 98 (H) mm / 2-13/16 (W) x 1-1/4 (D) x 3-7/8 (H) inches
Includes horizontal clamp: 84 (W) x 73 (D) x 98 (H) mm / 3-5/16 (W) x 2-7/8 (D) x 3-7/8 (H) inches
Weight: 170 g / 6 oz (including batteries) / 225 g / 8 oz (including batteries and clamp)
Clamp Mountable Diameter Size: Φ4.5 mm––Φ32 mm / Φ3/16––1-5/16 inches
Accessories: Clamp, Connection cables (0.4 m / 15 inches) x 2, Owner's Manual, Leaflet "USING THE UNIT SAFELY"
