Yamaha RSP20MLB Revstar Professional

Electric Guitar

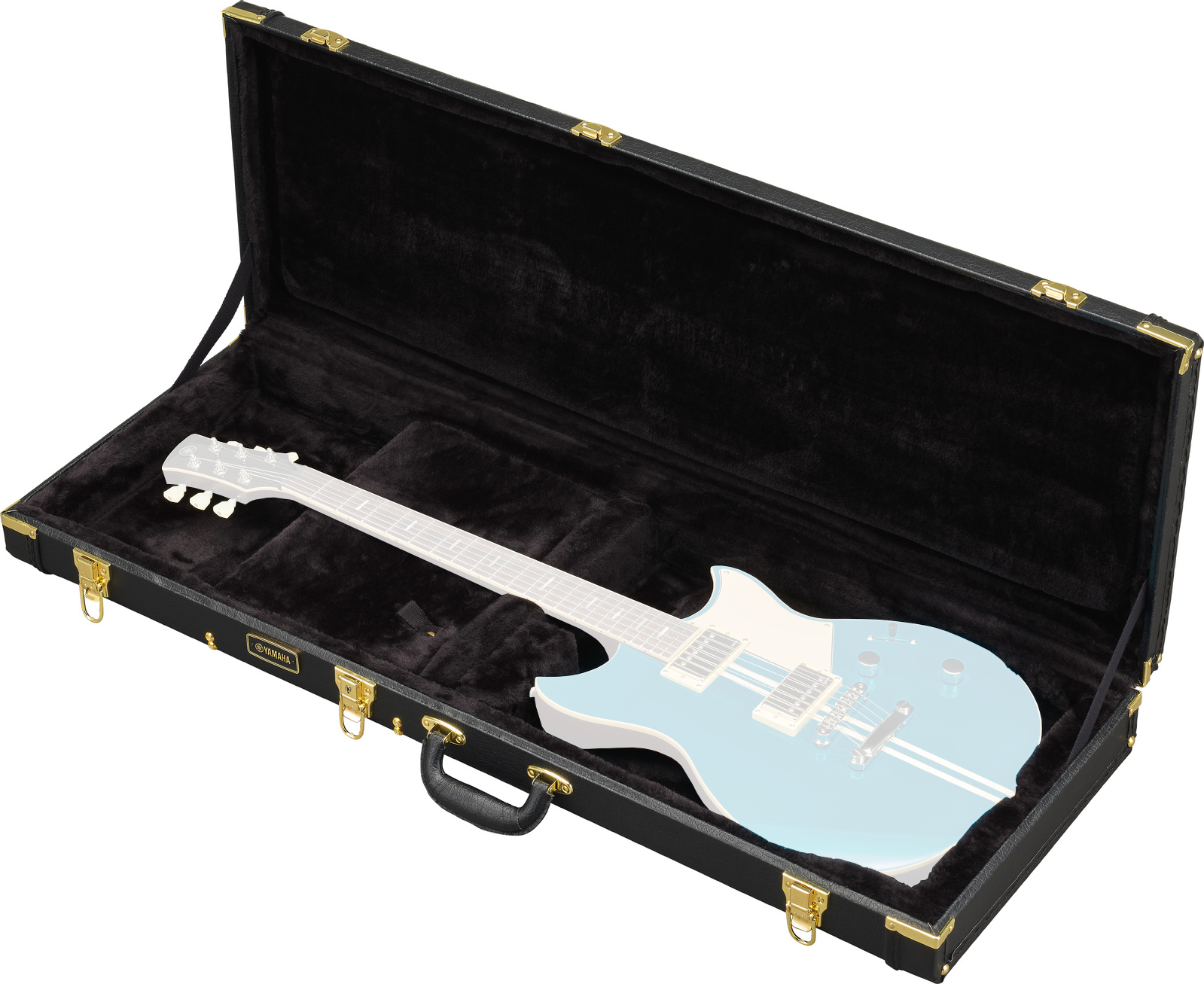

Please note: This guitar comes with a hardshell case.

Originally launched in 2015, Revstar was the first new electric guitar series from Yamaha in over a decade. A completely new lineup for 2022 offers three tiers, chambered bodies on every model, new racing-inspired finishes, new switching options, and left-handed models.

The Japanese-made RSP20 features carbon reinforcement in the neck and chambered body, dual humbucking pickups, 5-way switching, and a Focus Switch, providing exceptional versatility.

WHAT'S NEW IN THIS GENERATION

  • Chambered bodies developed with Yamaha’s Acoustic Design process to enhance tone, reduce weight, and optimise balance

  • Simplified three-tier lineup with choice of humbucking or P90-style pickups on Professional and Standard models

  • “Focus Switch” passive boost on Professional and Standard models

  • Left-handed models available in the Standard and Element tiers

  • A completely new range of café racer-inspired gloss finishes

Chambered Bodies
Every new Revstar features a chambered body designed with Yamaha’s Acoustic Design process to sculpt tone and increase resonance while reducing weight and optimising balance.

Carbon Reinforcement
Revstar Standard and Professional models feature carbon-reinforced necks. Professional models also add carbon reinforcement to the body for weight relief, vibration transfer, and tone shaping.

5-Way Switching
Standard and Professional models offer 5-way switching. In positions 2 and 4, our circuit slightly delays the opposite pickup for a new take on classic “in between” sounds.

Focus Switch
The push/pull Focus Switch on Standard and Professional models activate a passive boost that darkens highs while increasing bass and mids for an effect like overwound pickups.

Initial Response Acceleration (I.R.A.)
Revstar Professional guitars receive Yamaha’s I.R.A. treatment process which applies specific vibrations to release stresses in the instrument for a “played in” tone.

SPECIFICATIONS

Construction: Set-in
Scale Length: 24-3/4" (628.6mm)
Body Materials: Top: Maple, Back: Chambered 2pc Mahogany, Carbon Reinforcement
Body Finish: Gloss Polyurethane
Neck Materials: 3pc Mahogany, Carbon Reinforcement
Neck Finish: Satin Polyurethane
Fingerboard Materials: Rosewood
Fingerboard Radius: 12" (304.8mm)
Fret Wire: Jumbo Stainless Steel
Number of Frets: 22
Neck Width @0 Fret / 12th Fret: 41.9 / 56.8 mm
Thickness @1st Fret / 12th Fret: 21.0 / 23.9 mm
Nut Materials: High-Strength PPS
Neck Pickup: VH5n (Humbucker / Alnico V)
Bridge Pickup: VH5b (Humbucker / Alnico V)
Controls: Master Volume, Master Tone (Push-Pull "Focus Switch")
Pickup Switch: 5-Position Lever Switch
Bridge: Tune-O-Matic
String Spacing: 10.5 mm
Tailpiece: Stopbar
Tuning Machines: Die-Cast
Pickguard: 3-ply (Cream)
String Gauge: D'Addario EXL110 / 0.010-0.046
Case: Hardshell Case
Special Features: I.R.A. Treatment


For more information, click here to visit the manufacturers website.
