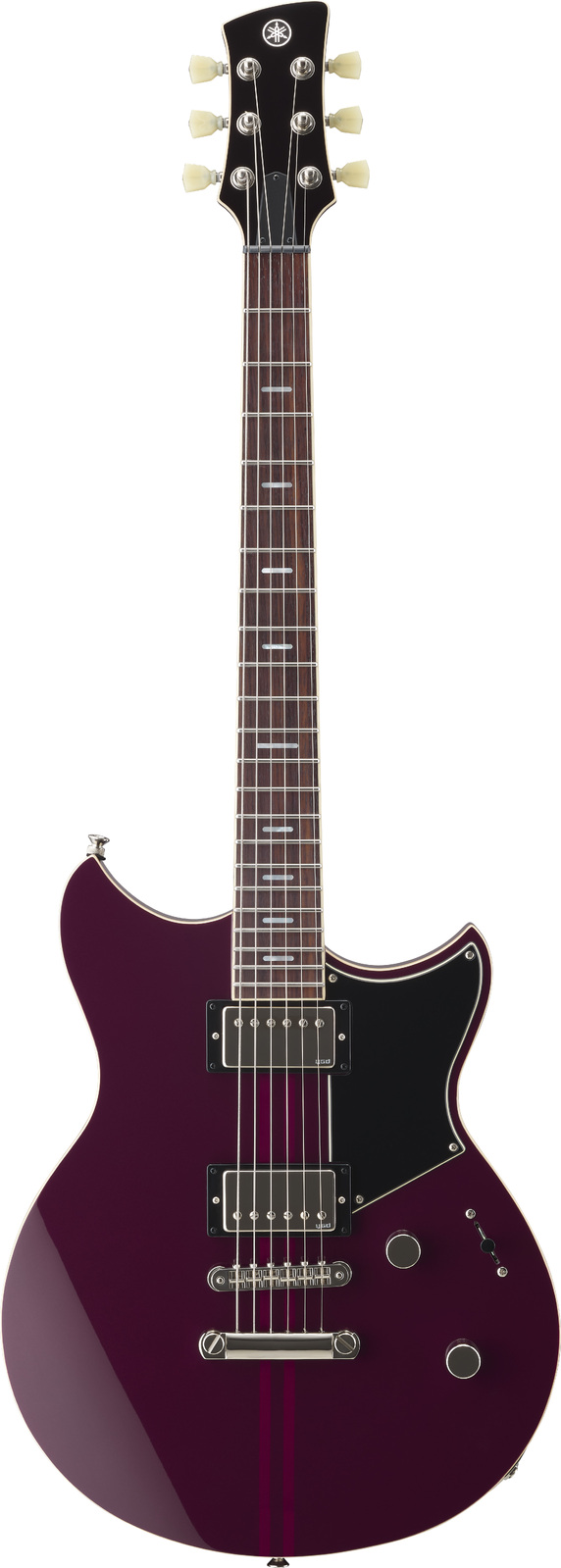

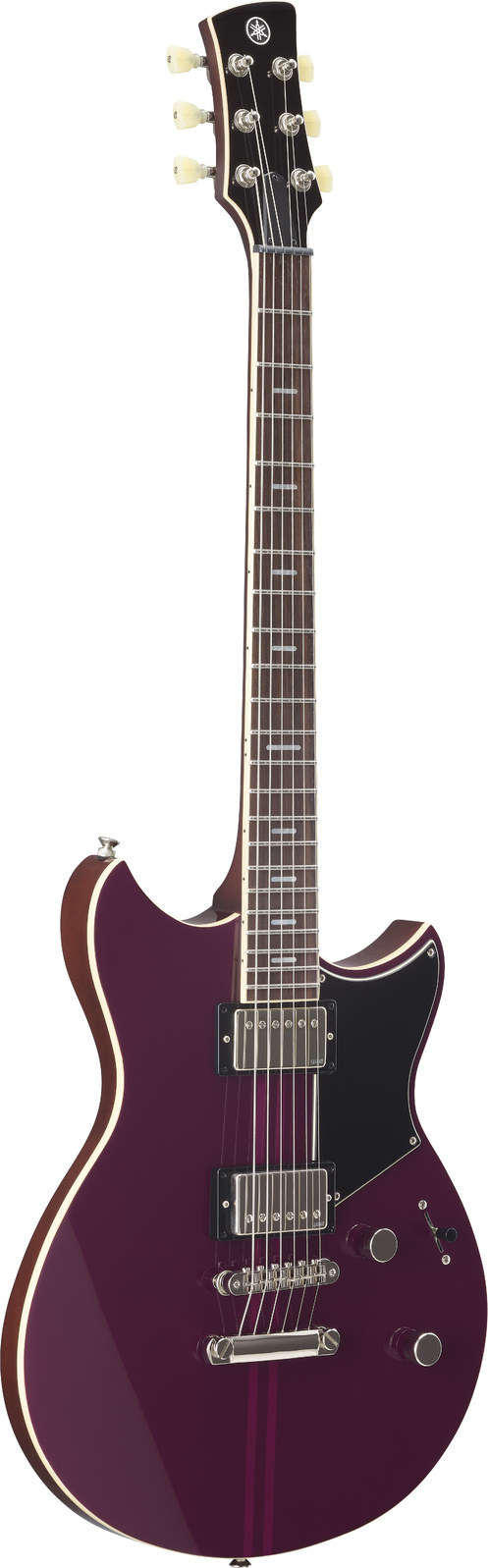

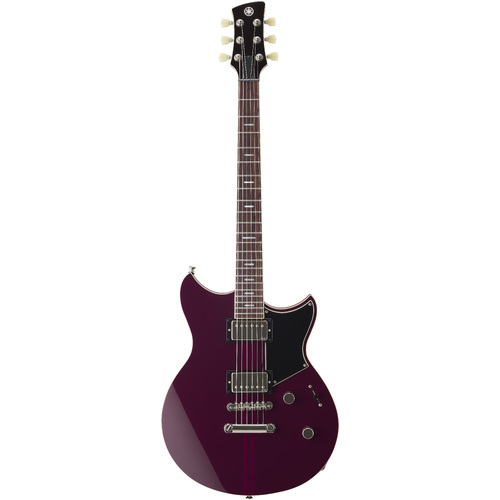

Yamaha RSS20HML Revstar Standard

Electric Guitar

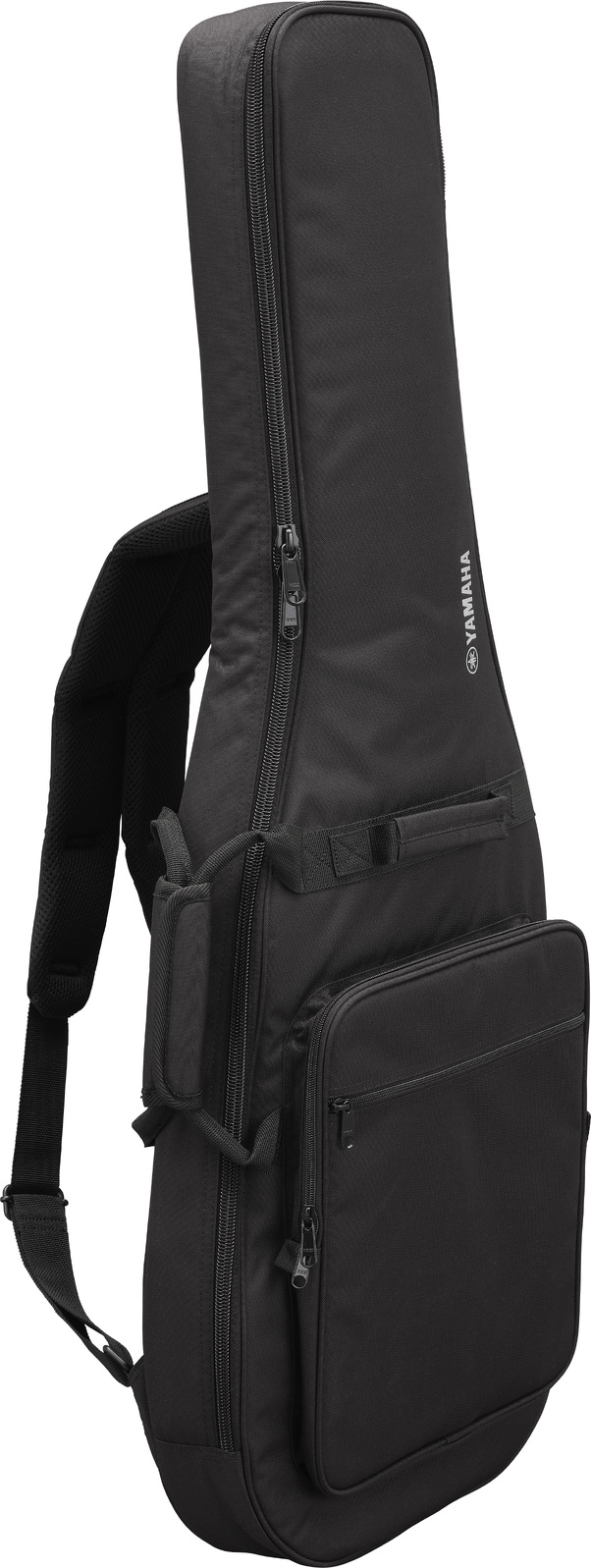

Please note: This guitar comes with a gig bag.

Originally launched in 2015, Revstar was the first new electric guitar series from Yamaha in over a decade. A completely new lineup for 2022 offers three tiers, chambered bodies on every model, new racing-inspired finishes, new switching options, and left-handed models.

The RSS20 features six finish options, a chambered body and carbon-reinforced neck, dual humbucking pickups, 5-way switching, and a passive Focus Switch, providing exceptional versatility.

WHAT'S NEW IN THIS GENERATION

  • Chambered bodies developed with Yamaha’s Acoustic Design process to enhance tone, reduce weight, and optimise balance

  • Simplified three-tier lineup with choice of humbucking or P90-style pickups on Professional and Standard models

  • “Focus Switch” passive boost on Professional and Standard models

  • Left-handed models available in the Standard and Element tiers

  • A completely new range of café racer-inspired gloss finishes

Chambered Bodies
Every new Revstar features a chambered body designed with Yamaha’s Acoustic Design process to sculpt tone and increase resonance while reducing weight and optimising balance.

Carbon Reinforcement
Revstar Standard and Professional models feature carbon-reinforced necks. Professional models also add carbon reinforcement to the body for weight relief, vibration transfer, and tone shaping.

5-Way Switching
Standard and Professional models offer 5-way switching. In positions 2 and 4, our circuit slightly delays the opposite pickup for a new take on classic “in between” sounds.

Focus Switch
The push/pull Focus Switch on Standard and Professional models activate a passive boost that darkens highs while increasing bass and mids for an effect like overwound pickups.

SPECIFICATIONS

Construction: Set-in
Scale Length: 24-3/4" (628.6mm)
Body Materials: Top: Maple, Back: Chambered 2pc Mahogany
Body Finish: Gloss Polyurethane
Neck Materials: 3pc Mahogany, Carbon Reinforcement
Neck Finish: Satin Polyurethane
Fingerboard Materials: Rosewood
Fingerboard Radius: 12" (304.8mm)
Fret Wire: Jumbo Stainless Steel
Number of Frets: 22
Neck Width @0 Fret / 12th Fret: 41.9 / 56.8 mm
Thickness @1st Fret / 12th Fret: 21.0 / 23.9 mm
Nut Materials: High-Strength PPS
Neck Pickup: VH5n (Humbucker / Alnico V)
Bridge Pickup: VH5b (Humbucker / Alnico V)
Controls: Master Volume, Master Tone (Push-Pull "Focus Switch")
Pickup Switch: 5-Position Lever Switch
Bridge: Tune-O-Matic
String Spacing: 10.5 mm
Tailpiece: Stopbar
Tuning Machines: Die-Cast
Pickguard: 3-ply (Black)
String Gauge: Elixir Nanoweb Light / 0.010-0.046
Case: Gig Bag
