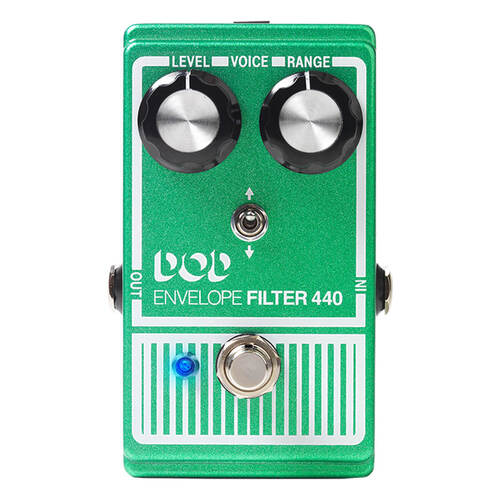

DOD Envelope Filter 440

Speak with vowel-like sounds, cry with slow-filter sweeps that react to your pick attack.

The 440 has all of the quack, squee, squonk, chicka, mwomp, and weeeooow, that you could ask for. It works equally well on guitar, bass, and keys. Use out for funky chordal work, simulated wah, or trippy drawn-out filter sweeps. While 440 is a faithful recreation of the vintage 440, the addition of the up/down toggle gives it a modern sonic twist.

FEATURES

• Level Control: Control the sensitivity of the envelope based upon your pick attack

• Range Control: Control the frequency range of movement of the envelope's sweep

• Up/Down Switch: Choose which part of the sweep you want to emphasize

• Based on original DOD Envelope Filter 440 circuit design with updated components

• True Bypass and new crisp blue LED status indicator

• Lighter aluminum chassis

SPECIFICATIONS

Input: 1¼” Instrument
Input Impedance: 1M Ohm
Output: 1¼” Instrument
Chassis Material: All Metal
Power Supply: 9V Alkaline Dry Battery, PS0913DC power supply

Dimensions
Height: 2.25”
Width: 2.63”
Length: 4.68”
Weight: 0.62 lbs.
